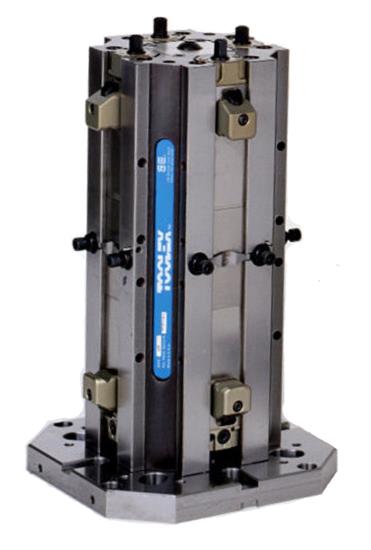

4" Relock® 8-Station Quad Vise - Vise Only - No Jaws - Includes 10.75" Square Baseplate, Vise Handle, Pry Wrench And Hex Key(S). Toolex® Relock® Modular Workholding System - The Relock Vise System Combines High Manufactured Tolerances With Unequalled Versatility In Providing Two-Station And Eight-Station Production Vises. Relock Cnc Vises, Available With Machinable Soft Jaws, Hard Jaws, Master Jaws And Parallels, Or Fixture Plates, Allow The Machinist A Variety Of Configurations With The Same Vise. Bodies Are Manufactured From 80,000 Psi Ductile Cast Iron, And Ways Are Flame Hardened And Ground To Accuracies Of +/- .0005". Manual And Hydraulic Two-Station And Eight-Station Vises Are Available In Widths Of 4", 6" And 8". Reduce Setup Times: The System’S Snaplock Feature Allows You To Change Or Index Jaws In A Matter Of Seconds. Extremely Versatile: Offers The Most Comprehensive Array Of Jaws And Accessories Available For Vertical Or Horizontal Machining Applications. Accurate And Durable: Designed And Precision Manufactured From High Grade Materials To Meet Today’S Extreme Accuracy And Durability Requirements.

• Exclusive SnapLock Knuckle allows SnapLock soft jaws and SnapLock carrier jaws to be attached and removed in seconds. The knuckle’s angle notch engages with the jaw’s pressure pin, eliminating jaw deflection.
• The ReLock’s center jaw locating studs allow quick jaw mounting and indexing to accuracies of +.0005." Fool-proof pin eliminates the possibility of the jaws being accidentally mounted in reverse.
• ReLock’s unique three-piece telescoping chip shield wraps completely around the SnapLock knuckles, keeping chips from getting into the vise’s clamping mechanism. Shields can be quickly and easily removed for maintenance purposes.
• Used in conjunction with SnapLock carrier jaws, the Single Station Conversion Plate allows the ReLock system to be converted from a double to a single station vise – ideal for larger work pieces.
