Kyocera E16XSDUCR0720A23 Right-Hand, Positive Rake, Coolant-Through Boring Bar

THC13880

E16XSDUCR0720A23

Weight: 0.8318 LBS

Brand: Kyocera Precision Tools

$925.36

(16% off)

$775.08

each

Add To My Favorites

Technical Details & Downloads

Product Description

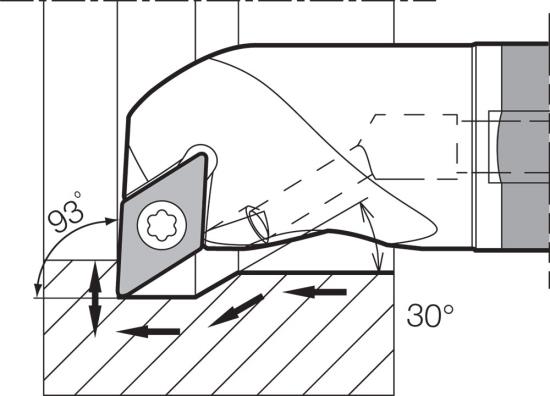

Kyocera E16xsducr0720a23 Right-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar With 93 Degree Lead Angle And 20.00Mm Minimum Bore Dia.

Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Large chip pocket provides superior chip evacuation
Anti-chatter vibration performance
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
3 (Axial), -5 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar

Made in Japan

CUYAHOGA FALLS, OHIO

Min. order amount	Shipping Option	Special Rate	Max Weight
$400.00	UPS Blue 2 Business Days	$18.99	5 LBS

$50.00 MINIMUM ORDER

If ordered by 2pm Eastern Standard Time Kyocera Precision will ship same Business Day.

Factory Stock

Additional Product Details
