Kyocera E12QSVPBR1118A Right-Hand, Positive Rake, Coolant-Through Boring Bar

THC14202

E12QSVPBR1118A

Weight: 0.6155 LBS

Brand: Kyocera Precision Tools

$662.08

(16% off)

$554.56

each

Add To My Favorites

Technical Details & Downloads

Product Description

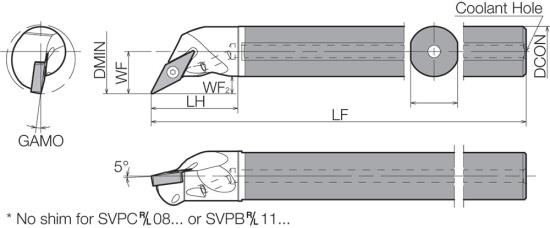

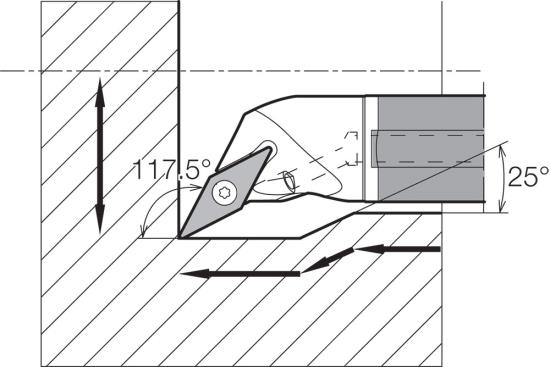

Kyocera E12qsvpbr1118a Right-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar With 117.5 Degree Lead Angle And 18.00Mm Minimum Bore Dia.

Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Large chip pocket provides superior chip evacuation
Anti-chatter vibration performance
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
5 (Axial), -8 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar

Made in Japan

CUYAHOGA FALLS, OHIO

Min. order amount	Shipping Option	Special Rate	Max Weight
$400.00	UPS Blue 2 Business Days	$18.99	5 LBS

$50.00 MINIMUM ORDER

If ordered by 2pm Eastern Standard Time Kyocera Precision will ship same Business Day.

Factory

Additional Product Details
