SG-1L6 Carbide Burr, 1/4" x 6" Long Shank, 1/4" Diameter Pointed Tree Shape, #4 Dura-Cut, Double Cut, 1/2"LOC, Bright Uncoated. Ultra-Tool® Made in USA Part # 03042

SG-1L6 Carbide Burr, 1/4" x 6" Long Shank, 1/4" Diameter Pointed Tree Shape, #4 Dura-Cut, Double Cut, 1/2"LOC, Bright Uncoated. Ultra-Tool® Made in USA Part # 03042
ULTRA TOOL/TOOL ALLIANCE
03042
03042
03042
Weight: 0.15 LBS
Brand: ULTRA TOOL/TOOL ALLIANCE
$21.90
each
Add To My Favorites
Technical Details & Downloads

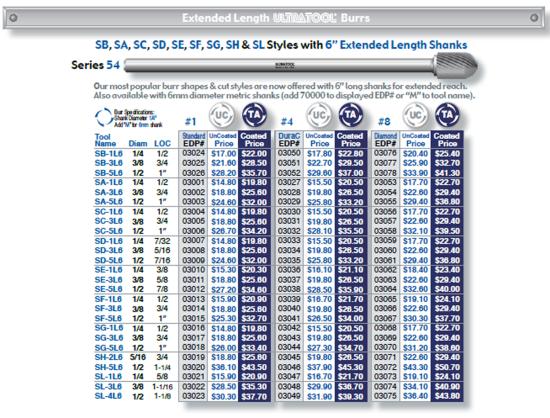

Technical/Extra Information Catalog Page
Product Description

Ultra-Tool® Dura-Cut, Cut Style #4 Allows For Rapid Stock Removal In Harder Materials. The Addition Of Left Hand Flutes Reduces The Pulling Action, Allowing Better Operator Control. It Reduces The Size Of The Chips And Can Be Used At Slower Than Normal Speeds. Ultra-Tool® Burr Heads And Solid Carbide Burrs Are Manufactured From Premium Ultra-Carb® Sub-Micron Grain Carbide. They Feature Higher Hardness And A Greater Flute Count Than Most Competing Brands For Increased Tool Life. The Steel Shanks Are Made Of High Speed Steel Hardened To A Rating Of 45-48 Rockwell C. All Ultra-Tool® Products Are Proudly Made In The U.S.A., 100% American Designed, American Made, American Owned.

  • Ultra-Carb® 1 Carbide, Cobalt Percentage: 6%
  • Grain Size (um): < / = 0.8
  • Hardness: 93.5 HRa
  • Fracture Toughness (K1c): 6.6
  • Transverse Rupture Strength (GPa): 3.8
  • Density (gm/cc): 14.90
  • Standard cylindrical helix angle: 30°, +/- 2°
  • Cutting Diameter Tolerance: +/- 0.010"
  • Shank Diameter Tolerance: + 0.0000" / - 0.0005"
  • Max TIR: 0.002", Brazed Burr Max TIR: 0.005"
  • Taper Angle Tolerance: +/- 1°
Made in U.S.A.
Shipping & Delivery Options
HUNTINGTON BEACH, CALIFORNIA, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 MINIMUM ORDER
If ordered by 3pm Eastern Standard Time Ultra Tool will Ship Same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ULTRA TOOL/TOOL ALLIANCE
Manufacturer Part Number
03042
Cutter Diameter
0.2500" 1/4"
Length Of Cut
0.5000"
Shank Diameter
1/4"
Tool Coating
Bright Uncoated
Tool Substrate Material
Solid Carbide
Hand Cutting Direction
Right Hand Cut
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
54
Brand
Ultra-Tool®
Model
SG-1L6
Shape
SG - Tree Shape Pointed End
Type
#4 Dura-Cut
Shank Length
6.000"
Length
6" Long Shank
