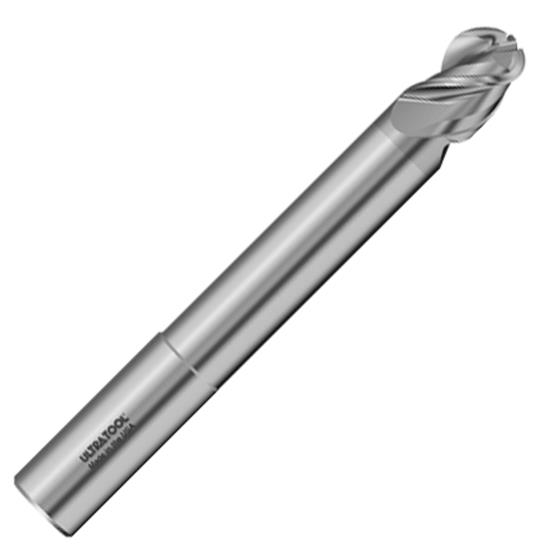

1/2" 3 Flute Ball Nose 45° Helix MONOLITH™ HP Carbide End Mill For Aluminum, 5/8"LOC, 4-1/8"Reach, 6"OAL, TiB2 Coated. Made in USA Ultra-Tool® Part #12017A1

1/2" 3 Flute Ball Nose 45° Helix MONOLITH™ HP Carbide End Mill For Aluminum, 5/8"LOC, 4-1/8"Reach, 6"OAL, TiB2 Coated. Made in USA Ultra-Tool® Part #12017A1
ULTRA TOOL/TOOL ALLIANCE
12017A1
12017A1
12017A1
0.5000" 1/2"
Weight: 0.636 LBS
Brand: ULTRA TOOL/TOOL ALLIANCE
$342.90
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

Ultra-Tool® Monolith™ Series 333Ml - Solid Carbide Extended Reach End Mills For Aluminum, 45° Right Hand Spiral, Three Flutes, Tight Tolerance, Minimal Tir. Extended Reach Applications Are Notoriously Difficult, But The Monolith™ Series Combines The Best Of Smoothgrind, Smoothcontricity, Smoothedge And Smoothcoat To Maximize Success. The 333Ml Holds Size & Concentricity To A Maximum Of .0003" Deviation, Even At A 12" Reach! All 333Ml Monoliths Feature Se8, With Optional Tc Or A1 Hardcoating. All Ultra-Tool® Products Are Proudly Made In The U.S.A., 100% American Designed, American Made, American Owned.

  • SmoothEdge® Technology.
  • Ultra-Grain®1.
  • 45° Degree Helix.
Made in U.S.A.
Shipping & Delivery Options
HUNTINGTON BEACH, CALIFORNIA, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $13.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 3pm Eastern Standard Time Ultra Tool will Ship Same Business Day.
Factory Stock
2
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ULTRA TOOL/TOOL ALLIANCE
Manufacturer Part Number
12017A1
Cutter Diameter
0.5000" 1/2"
Length Of Cut
0.625"
Overall Length
6.000" 6"
Shank Diameter
0.5000" 1/2"
Radius Size
Ball
Number Of Flutes
3
Helix Angle
45° Helix
End Style
Ball Nose
Tool Coating
TiB2
Tool Substrate Material
Carbide
Primary Application
High-Efficiency Machining
Max Reach
4.125"
Hand Cutting Direction
Right Hand Cut
Material Food Group
Aluminum, Al Alloys, Non-Ferrous
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
333MLB
Single Or Double End
Single End
Brand
Ultra-Tool®
Shank Type
Plain Cylindrical Shank
Coolant Through
No Coolant Hole
