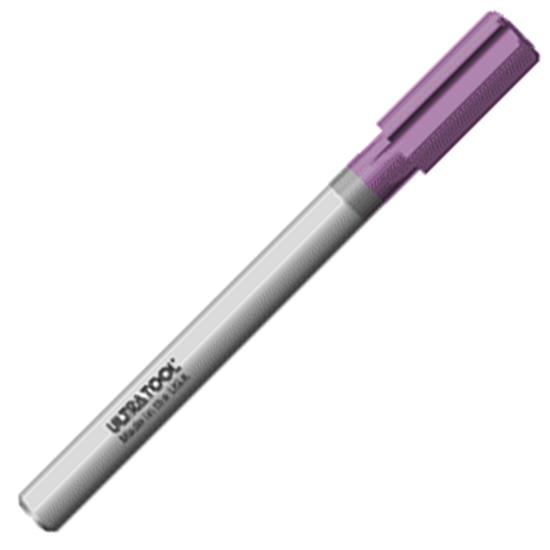

11/64" Straight Flute Long Length Solid Carbide Chucking Reamer, 4 Flutes, 1" LOC, 5/32" Shank, 4.50" OAL, AlTiN Coated. Made in USA Ultra-Tool® Part #45011AT

11/64" Straight Flute Long Length Solid Carbide Chucking Reamer, 4 Flutes, 1" LOC, 5/32" Shank, 4.50" OAL, AlTiN Coated. Made in USA Ultra-Tool® Part #45011AT
ULTRA TOOL/TOOL ALLIANCE
45011AT
45011AT
45011AT
0.1719" 11/64"
Weight: 0.1 LBS
Brand: ULTRA TOOL/TOOL ALLIANCE
$77.10
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

Ultra-Tool® Series 450 - Solid Carbide Straight Flute Fractional Size In-Stock Long Length Chucking Reamers. Manufactured From Ultra-Carb® Premium Micro-Grain Carbide Substrate. Reamers Up To 3/16" Diameter Are One-Piece Solid Carbide Construction. Series 450 Reamers Are Right Hand Cutting With A 45° Lead Chamfer Angle For Ease Of Entry Into Hole. The Series 450 Straight Flute Reamers Are Appropriate For All General Reaming Applications. Spiral Flute Reamers, In General, Will Produce A Better Surface Finish. Right Hand Sprial Flute Reamers Pull The Chip Upwards, Greatly Improving Chip Evacuation, And Should Therefore Be Used In Any Blind Hole Application. Left Hand Spiral Flute Reamers Push The Chips Downward And Are Recommended For Through-Hole Applications. The Shearing Action Is Excellent For Holes With Interruptions, Like Cross-Holes, Keyways And Elongated Slots.

  • Ultra-Tool® Series 450 - Solid Carbide Straight Flute Long Length Chucking Reamers
  • Manufactured From Ultra-Carb® Premium Micro-Grain Carbide Substrate
  • Reamers Up To 3/16" Diameter Are One-Piece Solid Carbide Construction
  • Series 450 Straight Flute Reamers Are Appropriate For All General Reaming Applications
  • Female Centers On Both Ends Of All Series 450 Reamers
  • 45° Lead Chamfer Angle For Ease Of Entry Into Hole
  • Reamer Diameter Tolerance: + 0.0002" / - 0.0000"
  • Shank Diameter Tolerance: +/- 0.0005"
  • Flute Length Tolerance: +/- 0.030"
  • Overall Length Tolerance: +/- 0.060"
Made in U.S.A.
Shipping & Delivery Options
HUNTINGTON BEACH, CALIFORNIA, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $13.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 3pm Eastern Standard Time Ultra Tool will Ship Same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ULTRA TOOL/TOOL ALLIANCE
Manufacturer Part Number
45011AT
Length Of Flute
1.000" 1"
Overall Length
4.50"
Shank Diameter
0.1562" 5/32"
Number Of Flutes
4 Flutes
Tool Coating
AlTiN Coated
Tool Substrate Material
Solid Carbide
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
450
Style
Straight Flute
Brand
Ultra-Tool®
Type
Long Length
Shank Type
Reduced Diameter Shank
Reamer Diameter
0.1719" 11/64"
