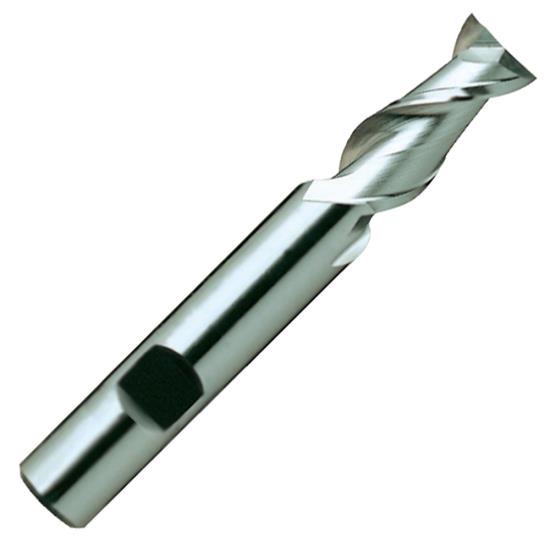

1" 2 Flute Square End Regular Length End Mill For Aluminum, 2"LOC, 1"Shank w/Flat, 4-1/2"OAL, 42° Helix, HSS M2 High Speed Steel, TiCN Coated

1" 2 Flute Square End Regular Length End Mill For Aluminum, 2"LOC, 1"Shank w/Flat, 4-1/2"OAL, 42° Helix, HSS M2 High Speed Steel, TiCN Coated
YG-1 TOOL CO.
17176HC
17176HC
17176HC
1.0000" 1"
Weight: 1.039 LBS
Brand: YG-1 TOOL CO.
$166.97
(30% off)
$117.11
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

1" 2 Flute Square End Regular Length End Mill For Aluminum, 2"Loc, 1"Shank W/Flat, 4-1/2"Oal, 42° Helix, Hss M2 High Speed Steel, Ticn Coated

  • YG-1 Series E1070: Inch size HSS M2 high speed steel end mills, center cutting, single end, square end, 2 flutes, Weldon Flat shank, 42° helix, regular and medium lengths
  • The two flute end mills for aluminum have High Helix flute design making them well suited for milling aluminum and other non-ferrous materials.
  • Special rake angles and low micro inch finishes on the primary clearance angles and flute faces insure free cutting action, fine finishes and longer tool life for both non-ferrous materials as well as harder alloys.
  • These tools are made from regular HSS(M2), which is good for aluminum cutting.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
17176HC
Tool Diameter
1.0000" 1"
Length Of Cut
2.000"
Overall Length
4.500"
Shank Diameter
1.0000" 1"
Radius Size
Sharp
Number Of Flutes
2
Helix Angle
42°
End Style
Square
Tool Coating
TiCN
Tool Substrate Material
High Speed Steel - M2 HSS
Primary Application
Aluminum Alloys
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
E1070
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
HSS & COBALT END MILLS
Shank Type
Weldon Flat Shank
Helix Type
Equal Index
