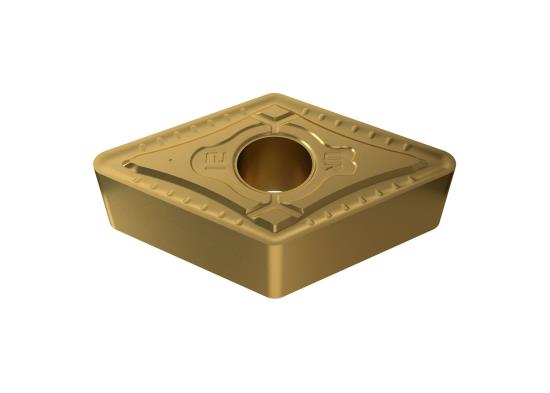

DNMG443-UR / DNMG150612-UR Grade YG3115 Carbide Insert, CVD MT-TiCN+Al2O3+TiN Coated, UR chip breaker for roughing and heavy interrupted turning steel.

DNMG443-UR / DNMG150612-UR Grade YG3115 Carbide Insert, CVD MT-TiCN+Al2O3+TiN Coated, UR chip breaker for roughing and heavy interrupted turning steel.
YG-1 TOOL CO.
22002416
22002416
22002416
DNMG443-UR
DNMG150612-UR
Weight: 0.04105 LBS
Brand: YG-1 TOOL CO.
$27.81
(35% off)
$18.08
each
6/30/2026
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information
Product Description

Dnmg443-Ur / Dnmg150612-Ur Grade Yg3115 Carbide Insert, Cvd Mt-Ticn+Al2o3+Tin Coated, Ur Chip Breaker For Roughing And Heavy Interrupted Turning Steel.

  • UR chip breaker for roughing and heavy interrupted turning steel.
  • YG3115 is a next generation CVD MT-TiCN+Al2O3+TiN coated grade for steel
  • Designed for high cutting speed with reliability of longer tool life
  • The new special sintering process results in a remarkable combination of high wear resistance and mechanical stress stability, increasing chipping resistance
  • YG-1's special post surface treatment and new coating enhances stability of the wear patterns with longer tool life, and extends the versatility of the grade from scale cuts in forged components and skin cuts in post heat treated components to both continuous and interrupted cuts
  • It meets the high coating adhesion demands from preventing built up edge commonly occurring in mild steel, low carbon steel and low carbon alloy steel.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
15
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
22002416
ISO Part Number
DNMG150612
ANSI Part Number
DNMG443
Radius Size
0.047"
Thickness
0.2500"
Material
P10-P25
Tool Coating
CVD MT-TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Heavy Interrupted Turning
Material Food Group
Steel
Country of Origin
Korea, Republic of
Grade
YG3115
Series
DNMG
Size
443
Shape
Rhombic 55°
Type
Turning, Negative
Inscribed Circle
0.5000"
Chip Breaker
UR
