1.063" Diameter, 3XD Indexable X-DRILL, Coolant Through - 3.189" Maximum Drill Depth x 1.25" Shank x 7.344" Overall Length. Uses SYMX08 Inserts. YG-1 Part # 37001095

YG-1 TOOL CO.

37001095

YGSY3-1.063S1.25-08I

Weight: 2.331 LBS

Brand: YG-1 TOOL CO.

$526.28

(8% off)

$484.44

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information

Product Description

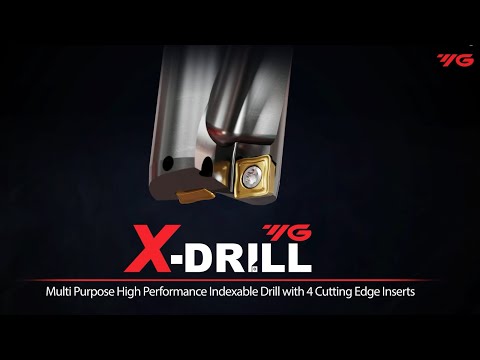

Yg-1 Has Launched A New Captive Drill That Offers Highly Efficient Performance And An Economic Solution. The X-Drill, Our Latest Innovation, Allows For The Full Utilization Of All Four Corners Of The Insert And Enables The Use Of The Same Insert In Both The Center And Periphery Insert Pocket, All While Ensuring Cost-Effectiveness And Versatility. Designed With Our Special Technology, The X-Drill Achieves Optimal Chip Evacuation Through Twisted Coolant Channels, While It's Surface-Treated Flutes Are Specifically Engineered For Smooth Chip Evacuation, Resulting In A Highly Stable Machining Process, Precise Dimensional Accuracy And Exceptional Hole Quality. The Yg713 Grade Featured In The X-Drill Has Been Meticulously Optimized To Deliver Maximum Predictability And Performance Across A Wide Range Of Workpiece Materials. Additionally, It Boasts A Long Tool Life Compared To Conventional Grades When Used For Drilling Applications.

Ulitlizes economic square type 4 cutting edge insert
One kind of insert in outer and inner pocket
Twisted coolant channel and enlarged chip gullet for better chip evacuation
Highly durable drill body due to high hardness and optimized material
New post surface Treatment flute enables to improved chip evacuation in deeper machining
Unique 1 chip curl per each flute
True 4 cutting edges are available

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: 37001095
Length Of Cut: 3.189"
Overall Length: 7.344"
Shank Diameter: 1.25"
Number Of Flutes: 2
Drill Type: Indexable YG SYMX X-DRILL
Tool Substrate Material: Special Alloy Steel
Hand Cutting Direction: Right Hand Cut
Uses Insert: SYMX08
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand Helix
Style: Spiral Flute
Shank Type: Flanged Shank
Drill Diameter: 1.063" 1-1/16"
LOC Multiple: 3XD
Shank Length: 3.250"
Flange Diameter: 1.625"

1.063" Diameter, 3XD Indexable X-DRILL, Coolant Through - 3.189" Maximum Drill Depth x 1.25" Shank x 7.344" Overall Length. Uses SYMX08 Inserts. YG-1 Part # 37001095
