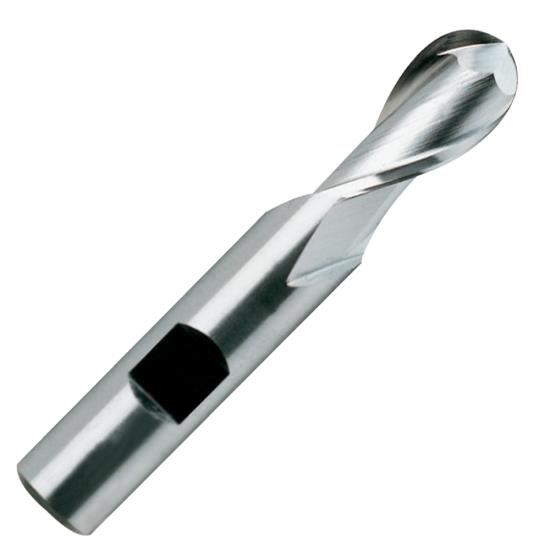

3/4" 2 Flute Ball Nose Regular Length End Mill, 1-5/8"LOC, 3/4"Shank w/Flat, 3-7/8"OAL, 30° Helix, HSS M2 High Speed Steel, Bright Finish

3/4" 2 Flute Ball Nose Regular Length End Mill, 1-5/8"LOC, 3/4"Shank w/Flat, 3-7/8"OAL, 30° Helix, HSS M2 High Speed Steel, Bright Finish
YG-1 TOOL CO.
41109
41109
41109
0.7500" 3/4"
Weight: 0.503 LBS
Brand: YG-1 TOOL CO.
$78.73
(25% off)
$59.16
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

3/4" 2 Flute Ball Nose Regular Length End Mill, 1-5/8"Loc, 3/4"Shank W/Flat, 3-7/8"Oal, 30° Helix, Hss M2 High Speed Steel, Bright Finish

  • YG-1 Series E1110: Inch size HSS M2 high speed steel end mills, center cutting, single end, ball nose, 2 flutes, regular length, Weldon Flat shank, 30° helix
  • Two flute ball end mills are designed for milling of radius bottom slots, fillets and special contours.
  • The two flute design provides good chip removal ability in slotting.
  • The end teeth are cut to center allowing these end mills to "drill" into material at the beginning of a slotting cut.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
38
Add to Cart
Local Florida Stock
1
$36.10
Available
More Info

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
41109
Tool Diameter
0.7500" 3/4"
Length Of Cut
1.625"
Overall Length
3.875"
Shank Diameter
0.7500" 3/4"
Radius Size
Ball
Number Of Flutes
2
Helix Angle
30°
End Style
Ball
Tool Coating
None
Tool Substrate Material
High Speed Steel - M2 HSS
Primary Application
General Purpose
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
E1110
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
HSS & COBALT END MILLS
Shank Type
Weldon Flat Shank
Helix Type
Equal Index
