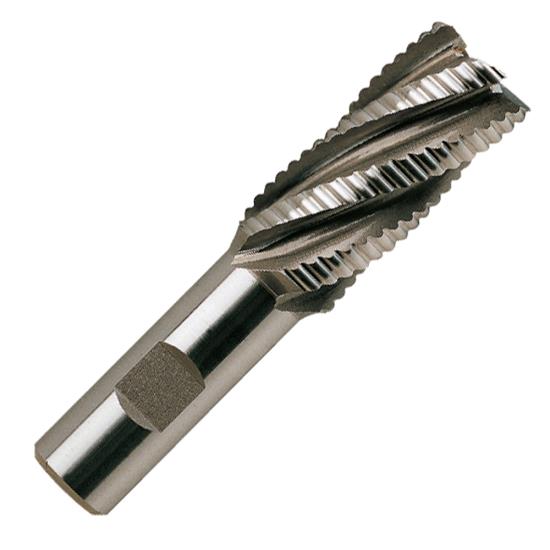

13/16" 4 Flute Square End Non-Center Cutting Coarse Tooth Rougher, 1-7/8"LOC, 3/4"Shank w/Flat, 4-1/8"OAL, 30° Helix, HSS-Co8% M42 Cobalt, TiAlN (TYLON)-Futura Coated

YG-1 TOOL CO.

60375CF

0.8125" 13/16"

Weight: 0.603 LBS

Brand: YG-1 TOOL CO.

$151.95

(33% off)

$101.23

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information

Product Description

13/16" 4 Flute Square End Non-Center Cutting Coarse Tooth Rougher, 1-7/8"Loc, 3/4"Shank W/Flat, 4-1/8"Oal, 30° Helix, Hss-Co8% M42 Cobalt, Tialn (Tylon)-Futura Coated

YG-1 Series E2170: Inch size HSS-Co8% M42 cobalt coarse pitch roughing end mills, non-center cutting, single end, square end, 3 to 8 flutes, Weldon Flat shank, 30° helix, regular length, coarse tooth roughing profile
This general purpose rougher is designed for high production metal removal in a wide range of work piece material.
It is recommended for cutting steel grades and many non-ferrous materials.
The end tooth of this tool has a center hole design for many accurate resharpenings between centers.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: 60375CF
Tool Diameter: 0.8125" 13/16"
Length Of Cut: 1.875"
Overall Length: 4.125"
Shank Diameter: 0.7500" 3/4"
Radius Size: Sharp
Number Of Flutes: 4
Helix Angle: 30°
End Style: Square
Tool Coating: TiAlN (TYLON)-FUTURA
Tool Substrate Material: Cobalt - M42 HSS-Co8%
Primary Application: General Purpose
Max Reach: 0.000"
Hand Cutting Direction: Right Hand
Inch Or Metric: Inch
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand
Series: E2170
Single Or Double End: Single End
Tooth Pitch: Coarse Pitch
Center Cutting: Non-Center Cutting
Type Of End Mill: Rougher, Coarse Tooth
Model: HSS & COBALT END MILLS
Shank Type: Weldon Flat Shank
Helix Type: Equal Index

13/16" 4 Flute Square End Non-Center Cutting Coarse Tooth Rougher, 1-7/8"LOC, 3/4"Shank w/Flat, 4-1/8"OAL, 30° Helix, HSS-Co8% M42 Cobalt, TiAlN (TYLON)-Futura Coated
