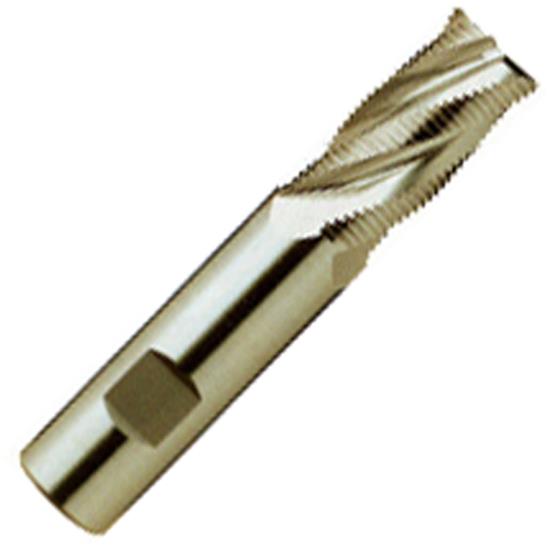

1/4" 3 Flute Square End Stub Length Fine Tooth Rougher, .250"LOC, 3/8"Shank w/Flat, 2-1/16"OAL. YG-1 30° Helix, HSS-PM ASP30 Powdered Metal, Bright Finish

In observance of Independence Day, this vendor will be closed on Friday, July 3rd. Orders and shipping may be delayed. Normal business will resume on Monday, July 6th.

YG-1 TOOL CO.

75507

0.2500" 1/4"

Weight: 0.029 LBS

Brand: YG-1 TOOL CO.

$49.73

(31% off)

$34.53

each

Add To My Favorites

Technical Details & Downloads

Product Description

1/4" 3 Flute Square End Stub Length Fine Tooth Rougher, .250"Loc, 3/8"Shank W/Flat, 2-1/16"Oal. Yg-1 30° Helix, Hss-Pm Asp30 Powdered Metal, Bright Finish

YG-1 Series ASP30 Multi-Flute Fine Pitch Stub Length Roughing End Mills: Inch size HSS-PM ASP-30 powdered metal fine pitch roughing end mills, center cutting, single end, square end, 3 flutes, Weldon Flat shank, 30° helix, stub length, fine tooth roughing profile, available with bright finish or Hardslick, TiCN, TiAlN (TYLON)-Extreme and TiAlN (TYTLON)-Futura coatings
Faster speeds and feeds than normal high speed steel can be applied to even hardened materials over HRc35
Powdered metallurgy makes higher productivity possible.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: 75507
Tool Diameter: 0.2500" 1/4"
Length Of Cut: 0.250"
Overall Length: 2.062"
Shank Diameter: 0.3750" 3/8"
Radius Size: Sharp
Number Of Flutes: 3
Helix Angle: 30°
End Style: Square
Tool Coating: None
Tool Substrate Material: Powdered Metal - ASP30 HSS-PM
Primary Application: General Purpose
Max Reach: 0.000"
Hand Cutting Direction: Right Hand
Inch Or Metric: Inch
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand
Series: ASP30 MF FP STB
Single Or Double End: Single End
Tooth Pitch: Fine Pitch
Center Cutting: Center Cutting
Type Of End Mill: Rougher, Fine Tooth
Model: ASP30
Shank Type: Weldon Flat Shank
Helix Type: Equal Index

1/4" 3 Flute Square End Stub Length Fine Tooth Rougher, .250"LOC, 3/8"Shank w/Flat, 2-1/16"OAL. YG-1 30° Helix, HSS-PM ASP30 Powdered Metal, Bright Finish
