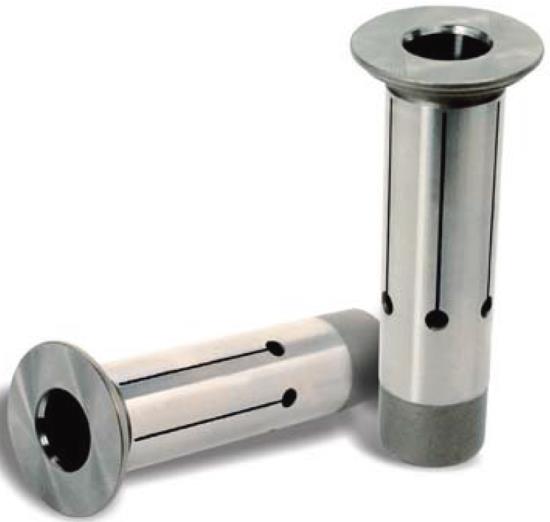

15mm I.D. x 20mm O.D. Hydraulic Chuck Collet (Reduction Sleeve: Closed Type). YG1 Part # 920150

920150
920150
920150
0.5906" 15.00mm
Weight: 0.11 LBS
Brand: YG-1 TOOL CO.
$165.55
(16% off)
$139.33
each
Product Description

15Mm I.D. X 20Mm O.D. Hydraulic Chuck Collet (Reduction Sleeve: Closed Type). Yg1 Part # 920150. Closed Type Hydraulic Chuck Reduction Sleeves (Collets) Are For Use With Coolant-Through Tools. The Use Of Reduction Sleeves Greatly Improves The Usefulness Of A Hydraulic Chuck. Use A Reduction Sleeve To Hold A Different Diameter Tool Shank And Increase Transferable Torque By Approximately 25%.

  • The Reduction Sleeve Outside Diameter Must Match Your Hydraulic Chuck's Nominal Inside Diameter.
  • Reduction Sleeves Are Available In 6 Different O.D.s; 1/2", 3/4", 1-1/4", 12mm, 20mm & 32mm For Clamping Tool Shanks From 1/8" To 1" & 3mm To 25mm.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
8

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
920150
Inside Diameter
0.5906" 15.00mm
Outside Diameter
0.787" 20mm
Country of Origin
Korea, Republic of
Type
Closed Type
