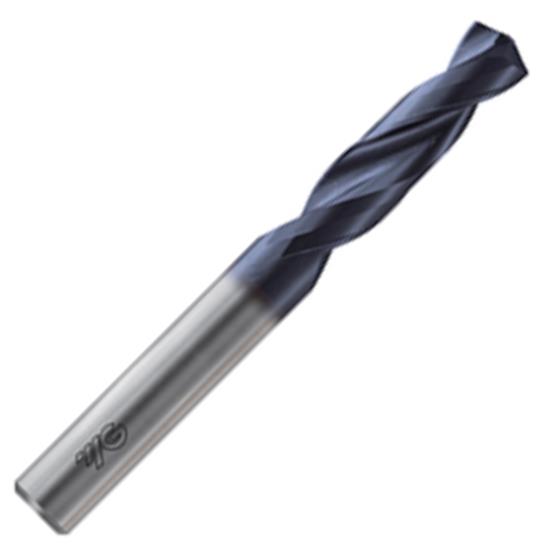

9.3mm Diameter 2 Flute YG BasiX General Purpose Solid Carbide Drill, 140° Point, 3XD Without Coolant Holes, TiAlN Coated - 9.3mm Shank x 40mm Flute Length x 84mm OAL

In observance of Independence Day, this vendor will be closed on Friday, July 3rd. Orders and shipping may be delayed. Normal business will resume on Monday, July 6th.
9.3mm Diameter 2 Flute YG BasiX General Purpose Solid Carbide Drill, 140° Point, 3XD Without Coolant Holes, TiAlN Coated - 9.3mm Shank x 40mm Flute Length x 84mm OAL
YG-1 TOOL CO.
DB301093
DB301093
DB301093
0.3661" 09.30mm
Weight: 0.1605 LBS
Brand: YG-1 TOOL CO.
$115.92
(31% off)
$80.49
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information
Product Description

9.3Mm Diameter 2 Flute Yg Basix General Purpose Solid Carbide Drill, 140° Point, 3Xd Without Coolant Holes, Tialn Coated - 9.3Mm Shank X 40Mm Flute Length X 84Mm Oal

  • For Drilling Steel, Cast Steel, Cast Iron, Malleable Cast Iron.
  • Self centering and chip breaking by R-thinning.
  • Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life.
  • Optimized flute shape for strength of drilling and smooth chip evacuation.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
20
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DB301093
Length Of Flute
40 mm
Overall Length
84 mm
Shank Diameter
Equals Drill Diameter
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
Ratio Drill 3XD
Helix Angle
30°
Tool Coating
TiAlN
Tool Substrate Material
Carbide
Primary Application
General Purpose
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
BasiX Drill
Single Or Double End
Single End
Shank Type
Straight Shank
Drill Diameter
0.3661" 09.30mm
LOC Multiple
3XD
Coolant Through
Without Coolant Holes
