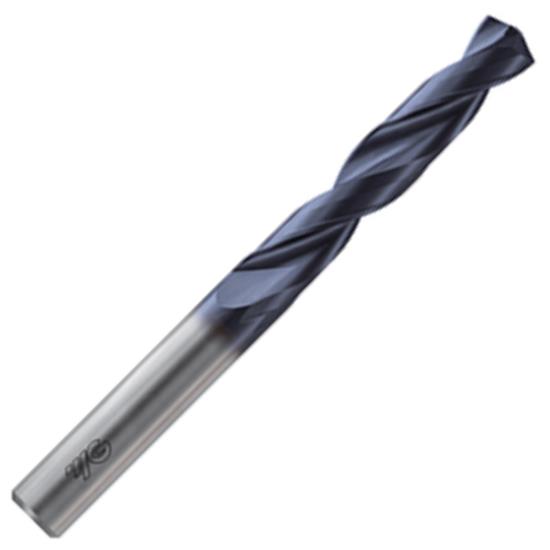

6.5mm Diameter 2 Flute YG BasiX General Purpose Solid Carbide Drill, 140° Point, 5XD Without Coolant Holes, TiALN Coated - 8mm Shank x 53mm Flute Length x 91mm OAL

6.5mm Diameter 2 Flute YG BasiX General Purpose Solid Carbide Drill, 140° Point, 5XD Without Coolant Holes, TiALN Coated - 8mm Shank x 53mm Flute Length x 91mm OAL
YG-1 TOOL CO.
DB501065
DB501065
DB501065
0.2559" 06.50mm
Weight: 0.108 LBS
Brand: YG-1 TOOL CO.
$90.42
(31% off)
$62.79
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information
Product Description

6.5Mm Diameter 2 Flute Yg Basix General Purpose Solid Carbide Drill, 140° Point, 5Xd Without Coolant Holes, Tialn Coated - 8Mm Shank X 53Mm Flute Length X 91Mm Oal

  • For Drilling Steel, Cast Steel, Cast Iron, Malleable Cast Iron.
  • Self centering and chip breaking by R-thinning.
  • Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life.
  • Optimized flute shape for strength of drilling and smooth chip evacuation.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
26
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DB501065
Length Of Flute
53 mm
Overall Length
91 mm
Shank Diameter
Equals Drill Diameter
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
Ratio Drill 5XD
Helix Angle
30°
Tool Coating
TiAlN
Tool Substrate Material
Carbide
Primary Application
General Purpose
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
BasiX Drill
Single Or Double End
Single End
Shank Type
Straight Shank
Drill Diameter
0.2559" 06.50mm
LOC Multiple
5XD
Coolant Through
Without Coolant Holes
