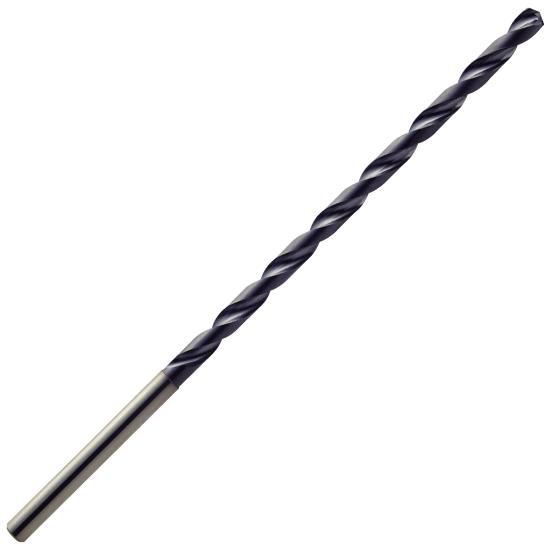

8.5mm Diameter MQL Type Extra Long 2 Flute YG Carbide Dream Drill For Steels & Cast Iron, 140° Point, 10XD With Coolant Holes, TiAlN Coated - 10mm Shank, 112mm Flute Length, 156mm OAL

8.5mm Diameter MQL Type Extra Long 2 Flute YG Carbide Dream Drill For Steels & Cast Iron, 140° Point, 10XD With Coolant Holes, TiAlN Coated - 10mm Shank, 112mm Flute Length, 156mm OAL 8.5mm Diameter MQL Type Extra Long 2 Flute YG Carbide Dream Drill For Steels & Cast Iron, 140° Point, 10XD With Coolant Holes, TiAlN Coated - 10mm Shank, 112mm Flute Length, 156mm OAL 8.5mm Diameter MQL Type Extra Long 2 Flute YG Carbide Dream Drill For Steels & Cast Iron, 140° Point, 10XD With Coolant Holes, TiAlN Coated - 10mm Shank, 112mm Flute Length, 156mm OAL
YG-1 TOOL CO.
DHM10085
DHM10085
DHM10085
0.3346" 08.50mm
Weight: 0.287 LBS
Brand: YG-1 TOOL CO.
$476.03
(33% off)
$321.32
each
6/30/2026
Add To My Favorites Coupon Available
Technical Details & Downloads

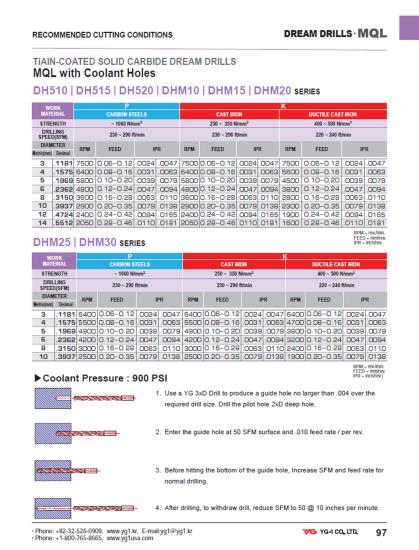

Technical/Extra Information Catalog Page
Product Description

8.5Mm Diameter Mql Type Extra Long 2 Flute Yg Carbide Dream Drill For Steels & Cast Iron, 140° Point, 10Xd With Coolant Holes, Tialn Coated - 10Mm Shank, 112Mm Flute Length, 156Mm Oal

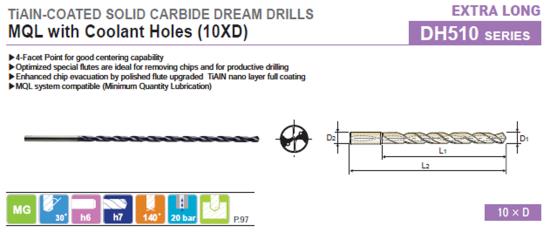

  • YG MQL (Minimum Quantity Lubrication) type carbide Dream Drills for drilling deep holes
  • 4-Facet Point for good centering capability
  • Optimized special flutes are ideal for removing chips and for productive drilling
  • Enhanced chip evacuation by polished flutes and upgraded TiAlN nano layer full coating
  • MQL system compatible (Minimum Quantity Lubrication) reduces coolant costs

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
7
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DHM10085
Length Of Flute
112 mm
Overall Length
156 mm
Shank Diameter
10mm
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
Ratio Drill 10XD
Helix Angle
30°
Tool Coating
TiAlN
Tool Substrate Material
Carbide
Primary Application
Non-Alloy Steels, Alloy Steels, Cast Iron
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Dream Drill MQL
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.3346" 08.50mm
LOC Multiple
10XD
Coolant Through
With Coolant Holes
