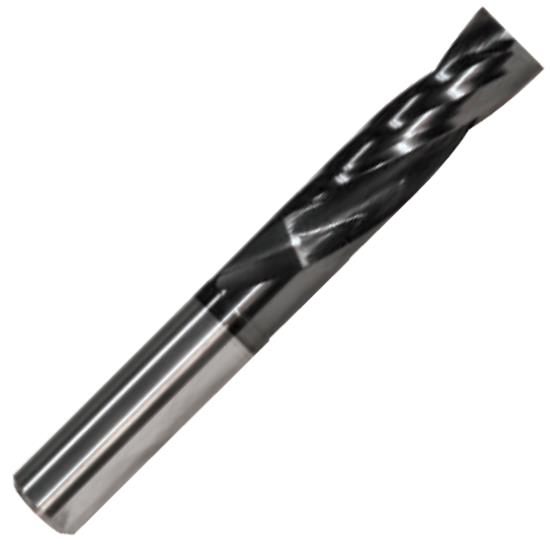

5.9mm Diameter 2 Flute YG Flat Bottom Carbide Dream Drill, 180° Point, 2XD Without Coolant Holes, X-Coating, TiAlN nano Layer - 6mm Shank x 26mm Flute Length x 60mm OAL

5.9mm Diameter 2 Flute YG Flat Bottom Carbide Dream Drill, 180° Point, 2XD Without Coolant Holes, X-Coating, TiAlN nano Layer - 6mm Shank x 26mm Flute Length x 60mm OAL 5.9mm Diameter 2 Flute YG Flat Bottom Carbide Dream Drill, 180° Point, 2XD Without Coolant Holes, X-Coating, TiAlN nano Layer - 6mm Shank x 26mm Flute Length x 60mm OAL 5.9mm Diameter 2 Flute YG Flat Bottom Carbide Dream Drill, 180° Point, 2XD Without Coolant Holes, X-Coating, TiAlN nano Layer - 6mm Shank x 26mm Flute Length x 60mm OAL 5.9mm Diameter 2 Flute YG Flat Bottom Carbide Dream Drill, 180° Point, 2XD Without Coolant Holes, X-Coating, TiAlN nano Layer - 6mm Shank x 26mm Flute Length x 60mm OAL

YG-1 TOOL CO.

DPP447059

0.2323" 05.90mm

Weight: 0.053 LBS

Brand: YG-1 TOOL CO.

$71.29

(33% off)

$48.12

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page

Product Description

5.9Mm Diameter 2 Flute Yg Flat Bottom Carbide Dream Drill, 180° Point, 2Xd Without Coolant Holes, X-Coating, Tialn Nano Layer - 6Mm Shank X 26Mm Flute Length X 60Mm Oal

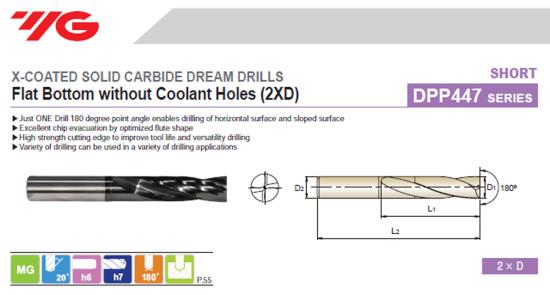

X-Coated (TiAlN nano Layered) Solid Micro Grain Carbide Drills For holes on various angled surfaces.

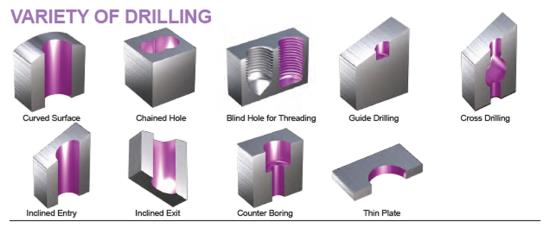

180 degree point angle enables drilling of flat, inclined and curved surfaces.
Optimized flute shape for excellent chip evacuation.
High strength cutting edge to improve tool life and versatility drilling.
For through holes, minimized burrs at entrance and exit when drilling thin plate.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: DPP447059
Length Of Flute: 26 mm
Overall Length: 60 mm
Shank Diameter: 6mm
Number Of Flutes: 2
Drill Point Angle: 180°
Drill Type: Flat Bottom Drill
Helix Angle: 20°
Tool Coating: TiAlN
Tool Substrate Material: Carbide
Primary Application: General Purpose
Hand Cutting Direction: Right Hand Cut
Country of Origin: Korea, Republic of
Series: Dream Drill Flat Bottom
Single Or Double End: Single End
Shank Type: Common Shank
Drill Diameter: 0.2323" 05.90mm
LOC Multiple: 2XD
Coolant Through: Without Coolant Holes

5.9mm Diameter 2 Flute YG Flat Bottom Carbide Dream Drill, 180° Point, 2XD Without Coolant Holes, X-Coating, TiAlN nano Layer - 6mm Shank x 26mm Flute Length x 60mm OAL
