#13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL

#13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL #13 Diameter 2 Flute YG Screw Machine (Stub) Length TiAlN Coated Multi-1 Drill For Stainless & Titanium, HSS-PM (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" OAL
YG-1 TOOL CO.
M16013
M16013
M16013

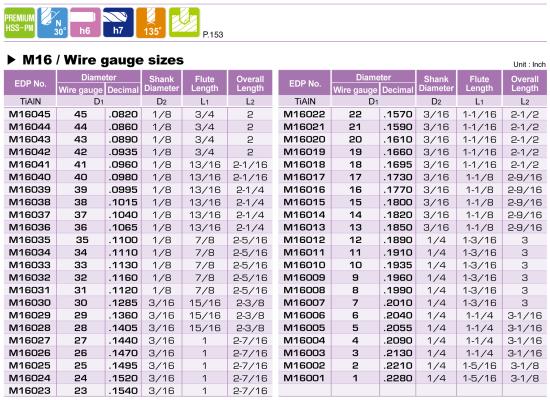

0.1850" 04.70mm #13
Weight: 0.02 LBS
Brand: YG-1 TOOL CO.
$29.79
(31% off)
$20.69
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

#13 Diameter 2 Flute Yg Screw Machine (Stub) Length Tialn Coated Multi-1 Drill For Stainless & Titanium, Hss-Pm (Powdered Metal), 135° Split Point, 3/16" Shank, 1-1/18" Flute Length, 2-9/16" Oal

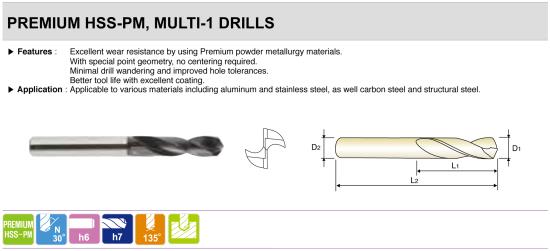

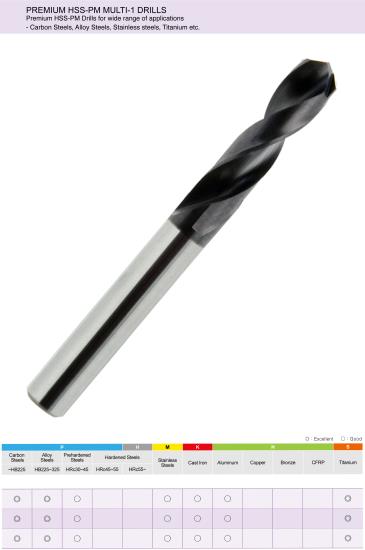

  • YG Multi-1 screw machine (stub) length TiAlN Coated premium HSS-PM (powdered metallurgy) drills are designed for powerful drilling in a wide range of materials including stainless steels, titanium, carbon steels and alloy steels as well as aluminum and cast iron
  • Excellent wear resistance by using Premium powder metallurgy materials
  • With special point geometry, no center driliing is required with minimal drill wandering and improved hole tolerances.
  • TiAlN coating for excellent tool life and better surface finish

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
12
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
M16013
Length Of Flute
1.125"
Overall Length
2.562"
Shank Diameter
3/16"
Number Of Flutes
2
Drill Point Angle
135°
Drill Type
Screw Machine, Stub Drill
Helix Angle
30°
Tool Coating
TiAlN
Tool Substrate Material
HSS-PM Powdered Metal
Primary Application
Titanium, Stainless Steels, Steels, Cast Iron
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Multi-1 Drill
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.1850" 04.70mm #13
Coolant Through
Without Coolant Holes
