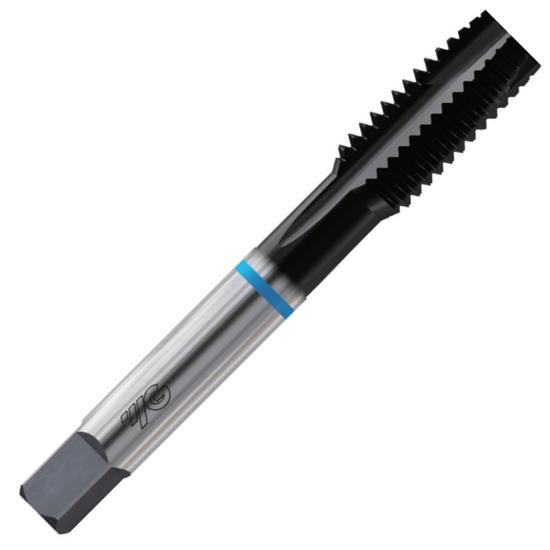

M7 x 1 D5, 3 Flute Spiral Point Plug CNC Tap, YG TAP BLUE RING, HSS-PM With Hardslick Coating For Steels & Stainless Steels To 35HRc

YG-1 TOOL CO.

N8345

M7 x 1

Weight: 0.064 LBS

Brand: YG-1 TOOL CO.

$42.09

(31% off)

$29.23

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Catalog Page

Product Description

Yg-1 Yg Tap Blue Ring Series N8: Cnc Tap For Steels And Stainless Steels <35Hrc. Taps Are Produced From Premium Hss-E (5% Cobalt Hss) And Come With Hardslick Coating. Taps Are Right Hand Cut, Right Hand Thread With Spiral Point. Spiral Point Plug Style Taps With 4-5 Pitch Lead Threads Are Primarily Applicable For Tapping Through Holes At Depths To 3.0Xd. Uscti Shank Cnc Tap With No Coolant Hole.

YG-1 YG TAP BLUE RING Series N8: CNC Tap For Steels and Stainless Steels <35HRc
Made from Premium HSS-E (5% Cobalt HSS) With Hardslick Coating
Right Hand Cut, Right Hand Thread with Spiral Point
Spiral Point Plug Style with 4-5 Pitch Lead threads
Primarily applicable for tapping Through Holes at depths to 3.0xD
USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: N8345
Thread Size: M7 x 1
Number Of Flutes: 3
Helix Angle: N/A
Type Of Tap: CNC Tap
Thread Direction: Right Hand
Thread Limit: D5
Thread Type: Metric
Tap Shank Type: USCTI Shank CNC Tap
Type Of Hole To Tap: Through Hole
Tool Coating: Hardslick Coated
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Primary Application: Steels and Stainless Steels <35HRc
Hand Cutting Direction: Right Hand
Country of Origin: Korea, Republic of
Hand Helix Direction: N/A
Series: N8
Style: Plug
Flute End Type: Spiral Point
Thread Chamfer: 4-5 Pitch Lead
Model: YG TAP BLUE RING
Size: 0.2756" M7 x 1
Type: CNC Tap
Coolant Through: No Coolant Hole
Max Depth Of Thread: 3.0xD
