NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length

NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length NCBP4R-10.04-005-YG812: .039" Minimum Bore x .157" Max Depth RH Boring & Profiling Bar, NanoCut TiN Coated Quick Change. 4mm Shank, .002" Radius, .004" Projection, .510" Out Of Holder Length
YG-1 TOOL CO.
NCBP04R1004005T
NCBP04R1004005T
NCBP04R1004005T
NCBP4R-10.04-005-YG812
Weight: 0.012 LBS
Brand: YG-1 TOOL CO.
$70.21
(16% off)
$59.09
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

At Present, As Demand For Small Parts (Camera Lens, Mobile Phone Parts) And Medical Instruments (Implants) Increases, Demand For Small-Diameter Products Capable Of High-Precision Processing Is Increasing. The New Yg-1 Nanocut Is A Quick Change Turning Tool System For Small Bore Applications Down To 1Mm (.039") Minimum Bore. Holders Supplied With Internal Coolant For Longer Tool Life And Enhanced Chip Evacuation. Secure Connection Design: Pin + Slant Positioning For High Repeatability, Reduced Machine Down Time And Lower Machining Cost With Longer Tool Life.

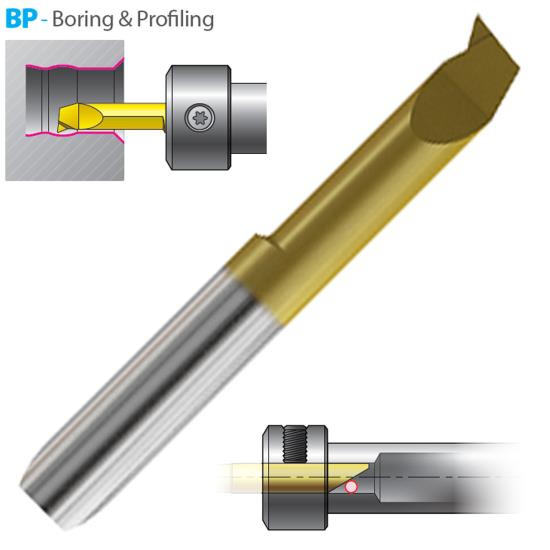

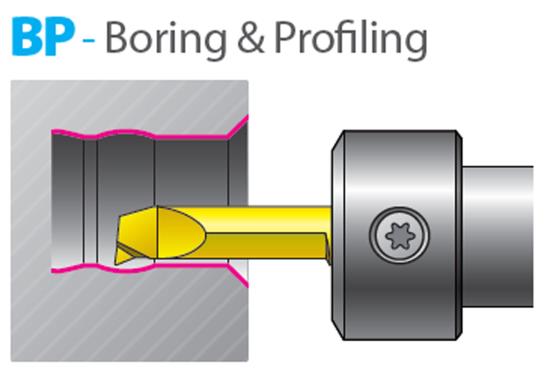

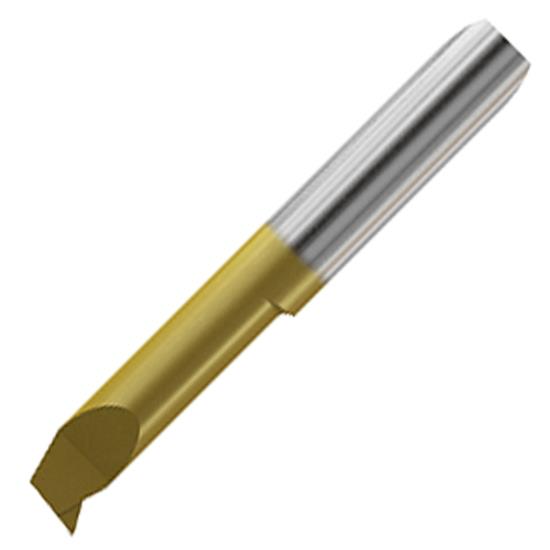

  • NanoCut BP - Boring & Profiling Insert
  • The new YG-1 NanoCut is a quick change turning tool system for small bore applications down to 1mm (.039") minimum bore.

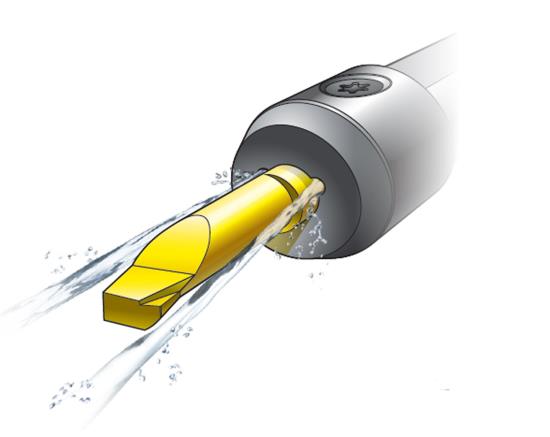

  • Holders Supplied With Internal Coolant for Longer Tool life and Enhanced Chip Evacuation
  • Secure Connection Design: Pin + Slant Positioning
  • High Repeatability
  • Reduced Machine Down Time
  • Submicron Grade Carbide Substrate Material for high toughness and wear resistance realizes high precision machining
  • Longer Tool Life
  • Lower Machining Cost

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
NCBP04R1004005T
Minimum Bore
0.039"
Shank Diameter
4mm
Radius Size
0.002"
Tool Coating
TiN
Tool Substrate Material
Carbide
Primary Application
Boring and Profiling, 82° Lead
Hand
Right Hand
Hand Cutting Direction
Right Hand
Protrusion Length
0.510" Out Of Holder
Country of Origin
Korea, Republic of
Series
BP
Projection Length
0.004"
Maximum Bore Depth
0.157"
