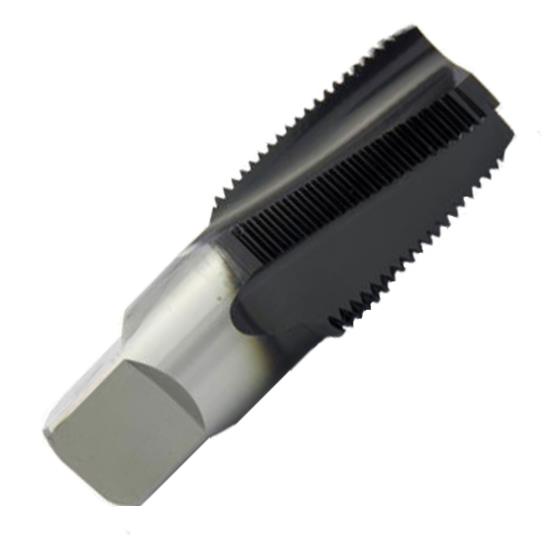

3/8-18 NPT/NPTF, 4 Flute 15° Slow Sprial Flute Modified Bottoming Taper Pipe Tap, HSS-E With Steam Oxide Finish For Steels & Stainless Steels

3/8-18 NPT/NPTF, 4 Flute 15° Slow Sprial Flute Modified Bottoming Taper Pipe Tap, HSS-E With Steam Oxide Finish For Steels & Stainless Steels 3/8-18 NPT/NPTF, 4 Flute 15° Slow Sprial Flute Modified Bottoming Taper Pipe Tap, HSS-E With Steam Oxide Finish For Steels & Stainless Steels 3/8-18 NPT/NPTF, 4 Flute 15° Slow Sprial Flute Modified Bottoming Taper Pipe Tap, HSS-E With Steam Oxide Finish For Steels & Stainless Steels
YG-1 TOOL CO.
Q0480
Q0480
Q0480
3/8-18 0.3750 NPT/NPTF
Weight: 0.29 LBS
Brand: YG-1 TOOL CO.
$62.82
(30% off)
$44.06
each
Add To My Favorites

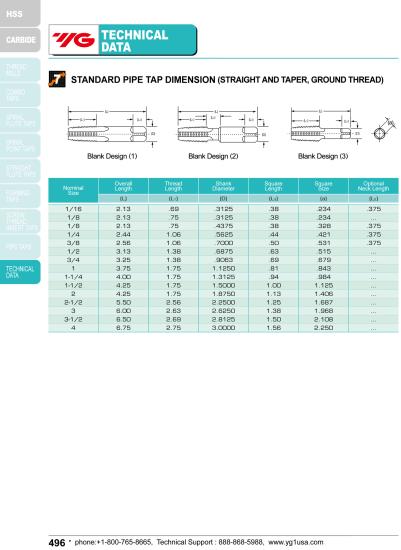

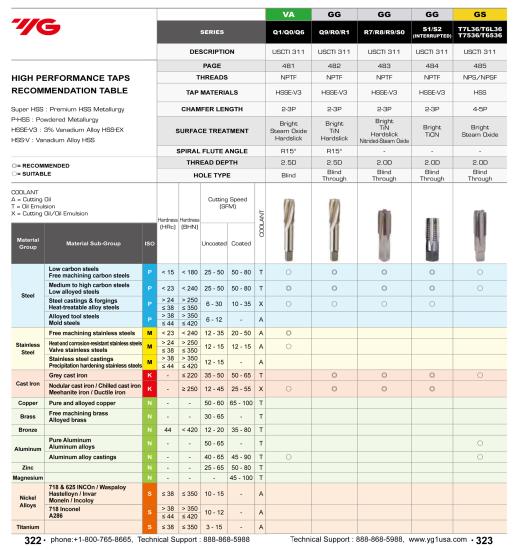

Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Pipe Tap Series Q0: Pipe Tap For Steels And Stainless Steels. Taps Are Produced From Premium Hss-E (5% Cobalt Hss) And Come With Steam Oxide Finish. Taps Are Right Hand Cut, Right Hand Thread With 15° Right Hand Spiral, Spiral Flute Modified Bottoming Style Taps With 2-3 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 2.5Xd. Uscti Shank Standard Pipe Tap With No Coolant Hole.

  • YG-1 PIPE TAP Series Q0: Pipe Tap For Steels and Stainless Steels
  • Made from Premium HSS-E (5% Cobalt HSS) With Steam Oxide Finish
  • Right Hand Cut, Right Hand Thread with 15° Right Hand Spiral Flute
  • Spiral Flute Modified Bottoming Style with 2-3 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 2.5xD
  • USCTI Shank Standard Pipe Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
25
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
Q0480
Thread Size
3/8-18 0.3750 NPT/NPTF
Number Of Flutes
4
Helix Angle
15°
Type Of Tap
Pipe Tap
Thread Direction
Right Hand
Thread Limit
N/A
Thread Type
NPT and NPTF
Tap Shank Type
USCTI Shank Standard Pipe Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
Steam Oxide Finish
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Primary Application
Steels and Stainless Steels
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
Q0
Style
Modified Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
2-3 Pitch Lead
Model
PIPE TAP
Size
0.3750" 3/8-18 NPT/NPTF
Type
Standard Pipe Tap
Coolant Through
No Coolant Hole
Max Depth Of Thread
2.5xD
