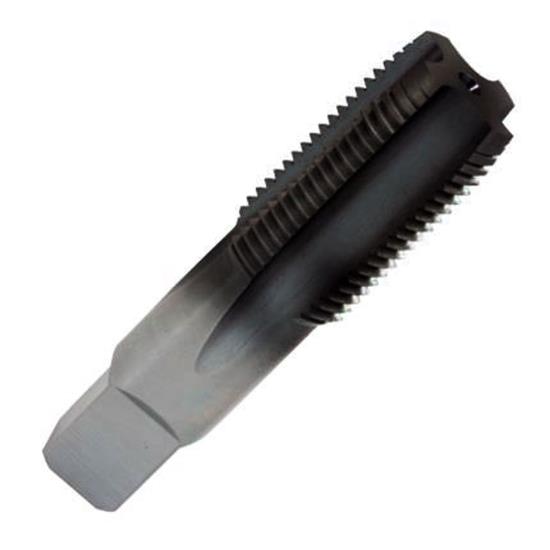

1/8-27 NPSF Large Shank, 4 Flute, Straight Flute Dry Seal Thread Straight Pipe Tap, HSS With Steam Oxide Finish For General Purpose

1/8-27 NPSF Large Shank, 4 Flute, Straight Flute Dry Seal Thread Straight Pipe Tap, HSS With Steam Oxide Finish For General Purpose 1/8-27 NPSF Large Shank, 4 Flute, Straight Flute Dry Seal Thread Straight Pipe Tap, HSS With Steam Oxide Finish For General Purpose 1/8-27 NPSF Large Shank, 4 Flute, Straight Flute Dry Seal Thread Straight Pipe Tap, HSS With Steam Oxide Finish For General Purpose

YG-1 TOOL CO.

T6536200

1/8-27 0.1250 NPSF

Weight: 0.094 LBS

Brand: YG-1 TOOL CO.

$47.30

(31% off)

$32.85

each

Add To My Favorites

Technical Details & Downloads

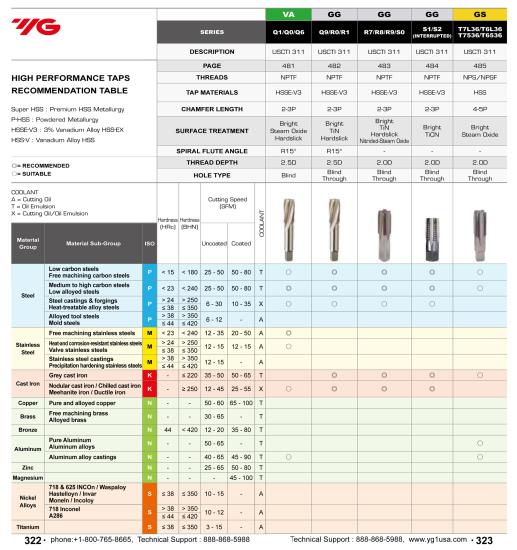

Technical/Extra Information Catalog Page Catalog Page

Product Description

Yg-1 Pipe Tap Series T6536: Pipe Tap For General Purpose. Taps Are Produced From Premium Hss (High Speed Steel) And Come With Steam Oxide Finish. Taps Are Right Hand Cut, Right Hand Thread With Straight Flute. Straight Flute Plug Style Taps With 4-5 Pitch Lead Threads Are Primarily Applicable For Tapping Through Holes At Depths To 2.0Xd. Uscti Shank Standard Pipe Tap With No Coolant Hole.

YG-1 PIPE TAP Series T6536: Pipe Tap For General Purpose
Made from Premium HSS (High Speed Steel) With Steam Oxide Finish
Right Hand Cut, Right Hand Thread with N/A N/A Straight Flute
Straight Flute Plug Style with 4-5 Pitch Lead threads
Primarily applicable for tapping Through Holes at depths to 2.0xD
USCTI Shank Standard Pipe Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in India or Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: T6536200
Thread Size: 1/8-27 0.1250 NPSF
Number Of Flutes: 4
Helix Angle: N/A
Type Of Tap: Pipe Tap
Thread Direction: Right Hand
Thread Limit: N/A
Thread Type: NPSF
Tap Shank Type: USCTI Shank Standard Pipe Tap
Type Of Hole To Tap: Through Hole
Tool Coating: Steam Oxide Finish
Tool Substrate Material: HSS (High Speed Steel)
Primary Application: General Purpose
Hand Cutting Direction: Right Hand
Country of Origin: India or Korea, Republic of
Hand Helix Direction: N/A
Series: T6536
Style: Plug
Flute End Type: Straight Flute
Thread Chamfer: 4-5 Pitch Lead
Model: PIPE TAP
Size: 0.1250" 1/8-27 NPSF
Type: Standard Pipe Tap
Coolant Through: No Coolant Hole
Max Depth Of Thread: 2.0xD
