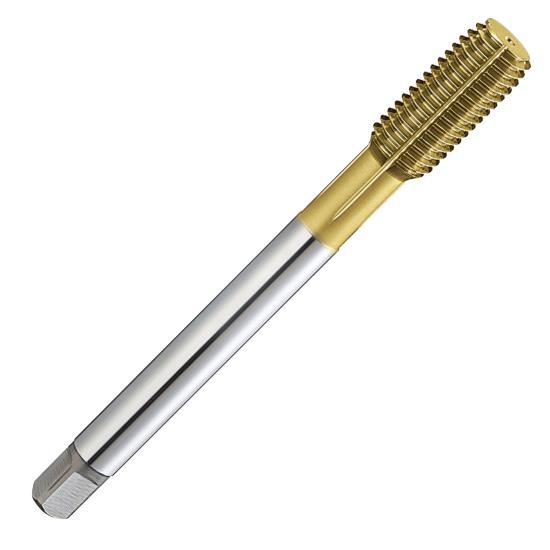

M12 x 1.75 D11, 6 Lobes With Oil Groove, Modified Bottoming Thread Roll Forming Standard Tap, SYNCHRO TAP, HSS-PM With TiN Coating For Rigid High Speed Thread Forming

In observance of Independence Day, this vendor will be closed on Friday, July 3rd. Orders and shipping may be delayed. Normal business will resume on Monday, July 6th.
M12 x 1.75 D11, 6 Lobes With Oil Groove, Modified Bottoming Thread Roll Forming Standard Tap, SYNCHRO TAP, HSS-PM With TiN Coating For Rigid High Speed Thread Forming
YG-1 TOOL CO.
TTS6450A
TTS6450A
TTS6450A
M12 x 1.75 FORM
Weight: 0.105 LBS
Brand: YG-1 TOOL CO.
$131.94
(30% off)
$92.53
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Synchro Tap Form Series Tts64: Forming Tap For High Speed Multi-Purpose Use. Taps Are Produced From Premium Hss-Pm (Powdered Metallurgy Hss) And Come With Tin Coating. Taps Are Right Hand Cut, Right Hand Thread Fluteless Thread Forming Tap. Fluteless Modified Bottoming Style Taps With 2-3 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 3.0Xd. Uscti Shank Standard Form Tap With Oil Groove

  • YG-1 SYNCHRO TAP FORM Series TTS64: Forming Tap For High Speed Multi-Purpose Use
  • Made from Premium HSS-PM (Powdered Metallurgy HSS) With TiN Coating
  • Right Hand Cut, Right Hand Thread Fluteless Thread Forming Tap
  • Fluteless Modified Bottoming Style with 2-3 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 3.0xD
  • USCTI Shank Standard Form Tap With Oil Groove

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
TTS6450A
Thread Size
M12 x 1.75
Number Of Flutes
6
Helix Angle
N/A
Type Of Tap
Forming Tap
Thread Direction
Right Hand
Thread Limit
D11
Thread Type
Metric
Tap Shank Type
USCTI Shank Standard Form Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
TiN Coated
Tool Substrate Material
HSS-PM (Powdered Metallurgy HSS)
Primary Application
High Speed Multi-Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
N/A
Series
TTS64
Style
Modified Bottoming
Flute End Type
Fluteless
Thread Chamfer
2-3 Pitch Lead
Model
SYNCHRO TAP FORM
Size
0.4724" M12 x 1.75 FORM
Type
Standard Forming Tap
Coolant Through
With Oil Groove
Max Depth Of Thread
3.0xD
