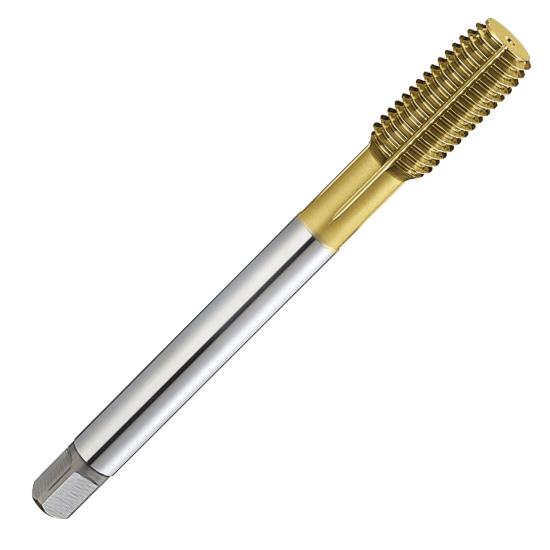

3/4-16 H10, 8 Lobes With Oil Groove, Modified Bottoming Thread Roll Forming Standard Tap, SYNCHRO TAP, HSS-PM With TiN Coating For Rigid High Speed Thread Forming

YG-1 TOOL CO.

TTS68720

3/4-16 0.7500 FORM

Weight: 0.341 LBS

Brand: YG-1 TOOL CO.

$414.74

(30% off)

$290.86

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Catalog Page

Product Description

Yg-1 Synchro Tap Form Series Tts68: Forming Tap For High Speed Multi-Purpose Use. Taps Are Produced From Premium Hss-Pm (Powdered Metallurgy Hss) And Come With Tin Coating. Taps Are Right Hand Cut, Right Hand Thread Fluteless Thread Forming Tap. Fluteless Modified Bottoming Style Taps With 2-3 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 3.0Xd. Uscti Shank Standard Form Tap With Oil Groove

YG-1 SYNCHRO TAP FORM Series TTS68: Forming Tap For High Speed Multi-Purpose Use
Made from Premium HSS-PM (Powdered Metallurgy HSS) With TiN Coating
Right Hand Cut, Right Hand Thread Fluteless Thread Forming Tap
Fluteless Modified Bottoming Style with 2-3 Pitch Lead threads
Primarily applicable for tapping Blind Holes at depths to 3.0xD
USCTI Shank Standard Form Tap With Oil Groove

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: TTS68720
Thread Size: 3/4-16 0.7500
Number Of Flutes: 8
Helix Angle: N/A
Type Of Tap: Forming Tap
Thread Direction: Right Hand
Thread Limit: H10
Thread Type: UN
Tap Shank Type: USCTI Shank Standard Form Tap
Type Of Hole To Tap: Blind Hole
Tool Coating: TiN Coated
Tool Substrate Material: HSS-PM (Powdered Metallurgy HSS)
Primary Application: High Speed Multi-Purpose
Hand Cutting Direction: Right Hand
Country of Origin: Korea, Republic of
Hand Helix Direction: N/A
Series: TTS68
Style: Modified Bottoming
Flute End Type: Fluteless
Thread Chamfer: 2-3 Pitch Lead
Model: SYNCHRO TAP FORM
Size: 0.7500" 3/4-16 FORM
Type: Standard Forming Tap
Coolant Through: With Oil Groove
Max Depth Of Thread: 3.0xD
