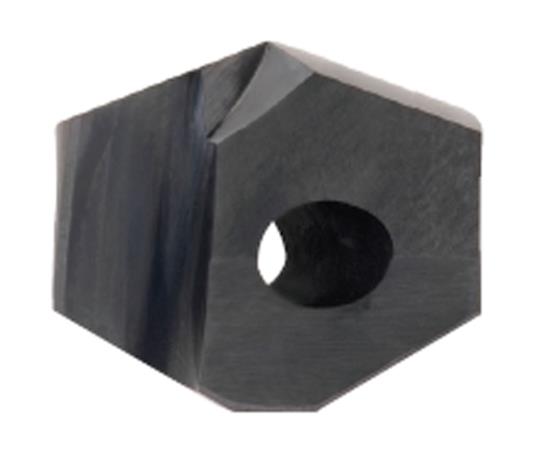

14.2mm (0.5591") i-Dream Drill Carbide Insert Series B-1, TiAlN Coated For Multi-Purpose Use, 4mm Insert Thickness. YG-1 Part # Y03B03

14.2mm (0.5591") i-Dream Drill Carbide Insert Series B-1, TiAlN Coated For Multi-Purpose Use, 4mm Insert Thickness. YG-1 Part # Y03B03 14.2mm (0.5591") i-Dream Drill Carbide Insert Series B-1, TiAlN Coated For Multi-Purpose Use, 4mm Insert Thickness. YG-1 Part # Y03B03 14.2mm (0.5591") i-Dream Drill Carbide Insert Series B-1, TiAlN Coated For Multi-Purpose Use, 4mm Insert Thickness. YG-1 Part # Y03B03

YG-1 TOOL CO.

Y03B03

14.2mm (0.5591"), Series B-1

Weight: 0.021 LBS

Brand: YG-1 TOOL CO.

$108.07

(30% off)

$75.79

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Catalog Page

Product Description

14.2Mm (0.5591") I-Dream Drill Carbide Insert Tialn Coated For Multi-Purpose Use, 4Mm Insert Thickness, Series B-1. Tialn Coated Inserts For Multi-Purpose Use Are Good For Most Types Of Steel And Cast Iron. Yg-1 Part # Y03b03

Drill Inserts are Not Included With The i-Dream Drill Holder, Inserts Are Sold Separately

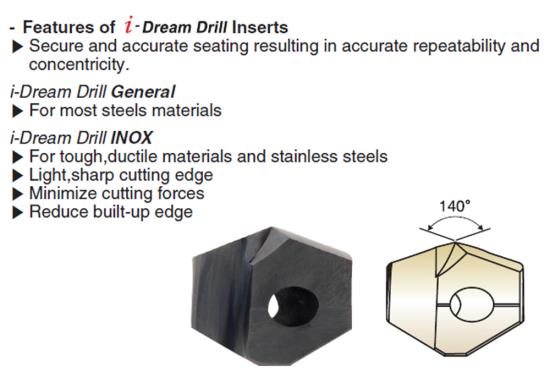

TiAlN Coated Inserts For Multi-Purpose Use Are Good For Most Types of Steel and Cast Iron.
INOX TiCN Coated Inserts Are For Tough, Ductile Materials and Stainless Steels - A light, sharp cutting edge minimizes cutting forces and reduces build-up.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

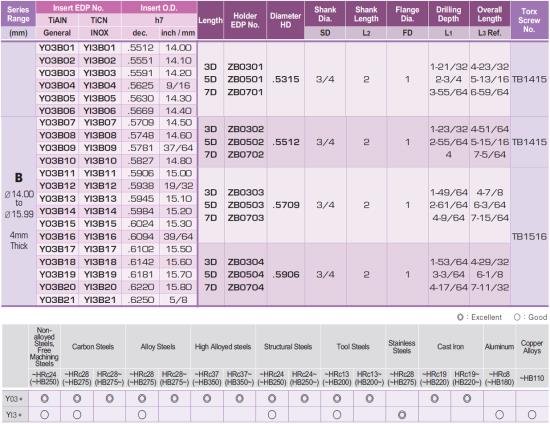

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: Y03B03
Drill Point Angle: 140°
Tool Coating: TiAlN
Tool Substrate Material: Carbide
Primary Application: Most Steel Materials and Cast Iron
Country of Origin: Korea, Republic of
Series: Series B-1
Screw Type: Uses Screw # TB1415
Size: 0.5591" 14.20mm
Type: i-Dream Drill

14.2mm (0.5591") i-Dream Drill Carbide Insert Series B-1, TiAlN Coated For Multi-Purpose Use, 4mm Insert Thickness. YG-1 Part # Y03B03
