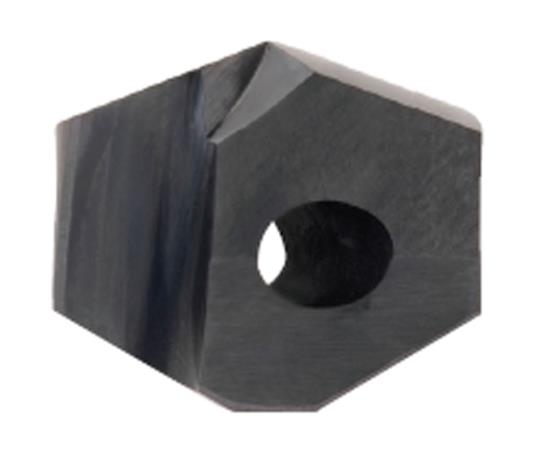

24.7mm (0.9724") i-Dream Drill Carbide Insert Series G-2, TiAlN Coated For Multi-Purpose Use, 6.5mm Insert Thickness. YG-1 Part # Y03G05

24.7mm (0.9724") i-Dream Drill Carbide Insert Series G-2, TiAlN Coated For Multi-Purpose Use, 6.5mm Insert Thickness. YG-1 Part # Y03G05 24.7mm (0.9724") i-Dream Drill Carbide Insert Series G-2, TiAlN Coated For Multi-Purpose Use, 6.5mm Insert Thickness. YG-1 Part # Y03G05 24.7mm (0.9724") i-Dream Drill Carbide Insert Series G-2, TiAlN Coated For Multi-Purpose Use, 6.5mm Insert Thickness. YG-1 Part # Y03G05
YG-1 TOOL CO.
Y03G05
Y03G05
Y03G05
24.7mm (0.9724"), Series G-2
Weight: 0.101 LBS
Brand: YG-1 TOOL CO.
$153.93
(30% off)
$107.97
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

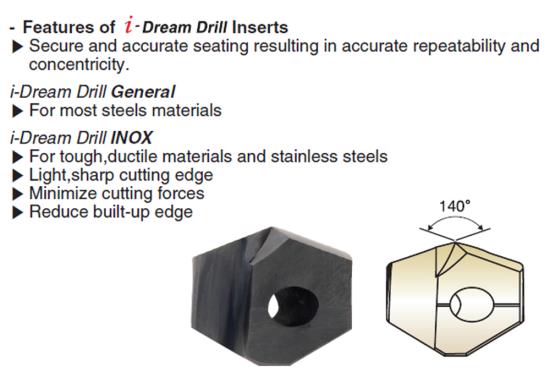

24.7Mm (0.9724") I-Dream Drill Carbide Insert Tialn Coated For Multi-Purpose Use, 6.5Mm Insert Thickness, Series G-2. Tialn Coated Inserts For Multi-Purpose Use Are Good For Most Types Of Steel And Cast Iron. Yg-1 Part # Y03g05

  • Drill Inserts are Not Included With The i-Dream Drill Holder, Inserts Are Sold Separately
  • TiAlN Coated Inserts For Multi-Purpose Use Are Good For Most Types of Steel and Cast Iron.
  • INOX TiCN Coated Inserts Are For Tough, Ductile Materials and Stainless Steels - A light, sharp cutting edge minimizes cutting forces and reduces build-up.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
30
Add to Cart

Additional Product Details

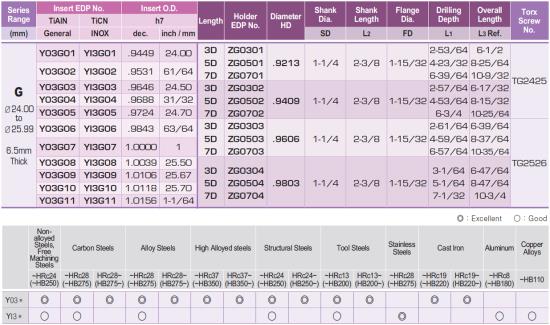

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
Y03G05
Drill Point Angle
140°
Tool Coating
TiAlN
Tool Substrate Material
Carbide
Primary Application
Most Steel Materials and Cast Iron
Country of Origin
Korea, Republic of
Series
Series G-2
Screw Type
Uses Screw # TG2425
Size
0.9724" 24.70mm
Type
i-Dream Drill
