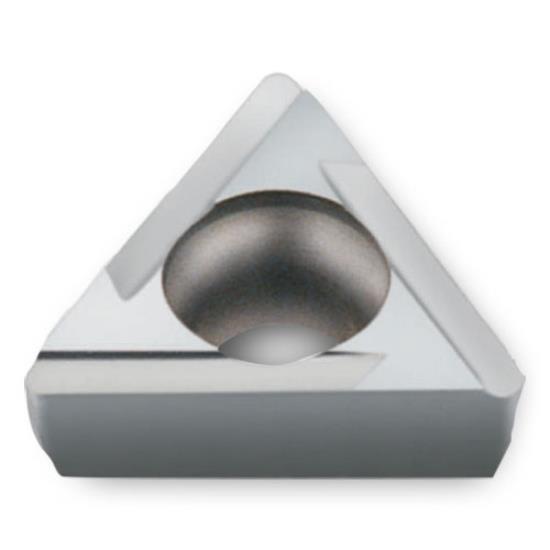

TPGT731L-C / TPGT090204L-C Grade CT3000 Cermet Left Hand Positive Turning Insert With Hole, Uncoated with L-C Chipbreaker for Finish Turning Cast Iron, Stainless, Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,CO,DC,HI,ID,LA,ME,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TPGT731L-C / TPGT090204L-C Grade CT3000 Cermet Left Hand Positive Turning Insert With Hole, Uncoated with L-C Chipbreaker for Finish Turning Cast Iron, Stainless, Steel TPGT731L-C / TPGT090204L-C Grade CT3000 Cermet Left Hand Positive Turning Insert With Hole, Uncoated with L-C Chipbreaker for Finish Turning Cast Iron, Stainless, Steel
INGERSOLL CUTTING TOOLS
5780294
5780294
TPGT090204L-C CT3000
TPGT731L-C CT3000
Weight: 0.004 LBS
Brand: INGERSOLL CUTTING TOOLS
$21.60
(40% off)
$12.99
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tpgt731l-C / Tpgt090204l-C Uses Ct3000 Uncoated Cermet For High-Quality Finish Turning And Controlled Wear. This Insert Is Intended For Steel Finishing And Semi-Finishing Where Part Finish, Dimensional Consistency And Low Cutting Friction Are Important. The L-C Chipbreaker Supports The Listed Finish Turning Application. In The Proper Application, Cermet Can Reduce Cost Per Part Versus A Carbide Finishing Grade By Running Cleanly And Holding A Fine Edge On Stable Cuts. It Is Not The First Choice For Heavy Roughing, Hard Scale Or Severe Interrupted Cuts. Key Dimensions Include 0.219" Ic, 0.094" Thickness, 0.016" Corner Radius. Left Hand With Hole Design. Ingersoll Part # 5780294

  • TPGT731L-C / TPGT090204L-C CT3000 cermet turning insert
  • Exceptional finishing capability for steel applications
  • Cermet grade helps deliver excellent surface finish and low cutting friction
  • Can reduce cost per finished part versus carbide in stable finishing applications
  • L-C chipbreaker for finish turning
  • Uncoated cermet grade for clean finishing cuts and low friction
  • 0.219" IC, 0.094" thickness, 0.016" corner radius
  • 3 usable cutting edges
  • Recommended for ISO K10-K20, M10-M15, P10-P15; cast iron, stainless steel, and steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5780294
ISO Part Number
TPGT090204L-C
ANSI Part Number
TPGT731L-C
Radius Size
0.016"
Thickness
0.094"
Material
Cast Iron, Stainless, Steel
Tool Coating
Uncoated
Tool Substrate Material
Cermet
Primary Application
Finish Turning
Angle Per Side
11°
Hand
Left Hand
Included Angle
60°
Material Food Group
K10-K20, M10-M15, P10-P15
Grade
CT3000
Series
TPGT
Style
With Hole
Brand
Ingersoll
Model
ISO Turn Holder
Size
731
Type
Positive Turning Insert
Inscribed Circle
0.219"
Chip Breaker
L-C
Number Of Points
3
