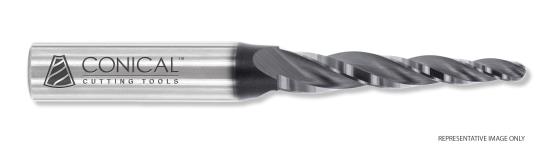

4 Degree HSS Tapered Ball Nose End Mill, 3 Flute, 3/8" Tip, 1 1/4" LOC - Conical D-605-BE

Conical has to add the Ball on this Tool, 2 - 3 Weeks Delivery time and NON-RETURNABLE - NON-REFUNDABLE - ALSO Conical Does Not have a Stock Feed so please hit the REQUEST STOCK AVAILABILITY BUTTON FOR CONFIRM STOCK!
4 Degree HSS Tapered Ball Nose End Mill, 3 Flute, 3/8" Tip, 1 1/4" LOC - Conical D-605-BE
CONICAL TOOL COMPANY
D-605-BE
D-605-BE
2D20B
Weight: 0.178 LBS
Brand: CONICAL TOOL COMPANY
$82.64
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

Conical Tool Company D-605-Be Is A High Speed Steel (Hss) Tapered Ball Nose End Mill For Milling Draft Angles And Tapered Walls. The Angle Is 4 Degrees Per Side (8 Degrees Included). It Has 3 Flutes, A 3/8" Tip Diameter, 1 1/4" Length Of Cut, 1/2" Shank Diameter And 3 1/4" Overall Length. The Large Diameter Is 0.5498". Made From Premium High Speed Steel With An Uncoated Bright Finish. The Ball Nose Has A 0.1875" Radius For Contoured Surfaces. 25 - 30 Degrees Variable Lead Helix. Single Weldon. Center Cutting. Series Thx, Subseries Th04d. Manufacturer Edp 2D20b. Sold Individually.

  • 4 Degree taper per side
  • 3 flutes; ball end
  • 3/8" tip diameter; 1 1/4" length of cut
  • 1/2" shank; 3 1/4" overall length
  • Premium High Speed Steel; Uncoated (Bright)
  • Conical D-605-BE; EDP 2D20B
Made in U.S.A.
Shipping & Delivery Options
GRAND RAPIDS, MICHIGAN, USA
  • UPS
$25.00 MINIMUM ORDER
WITHIN 1 BUSINESS DAY TO SHIP.
IF IN STOCK WILL SHIP FROM CONICAL
Stock
Item
Add to Cart Request Stock Availability
Please sign in or register to request stock availability.

Additional Product Details

Technical Details

Manufacturer
CONICAL TOOL COMPANY
Manufacturer Part Number
D-605-BE
Tool Diameter Decimal
0.3750"
Tool Diameter Standard
3/8"
Tip Diameter
0.3750" 3/8"
Length Of Cut
1.2500" 1-1/4"
Overall Length
3.2500" 3-1/4"
Shank Diameter
0.5000" 1/2"
Tip Radius
0.1875" 3/16"
Number Of Flutes
3
Helix Angle
25.0 - 30.0 Degree Variable Lead
Material
Premium High Speed Steel
Tool Coating
Uncoated (Bright)
Tool Substrate Material
HSS
Angle Per Side
4.0 Degree
Included Angle
8.0 Degree
Inch Or Metric
Inch
Country of Origin
U.S.A.
End Type
Ball End
Center Cutting
Yes
Brand
Conical Tool Company
Type Of End Mill
Tapered HSS End Mills
Taper
4.0 Degree
