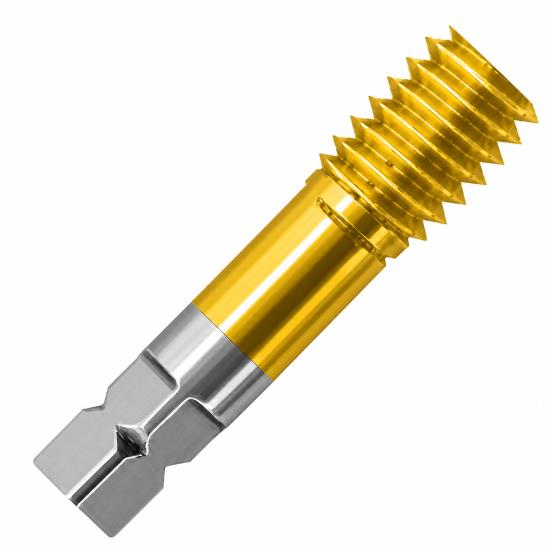

M5 x 0.8 D8 BXIL Thredfloer In-Line Stub Forming Tap, Premium High Speed Steel, TiN Coated for Non-Ferrous, Steel & Stainless Steel - Balax 18288-00T

This vendor requires us to bring the item into our Florida warehouse for the following states: AL before shipping to you.
M5 x 0.8 D8 BXIL Thredfloer In-Line Stub Forming Tap, Premium High Speed Steel, TiN Coated for Non-Ferrous, Steel & Stainless Steel - Balax 18288-00T
GWS TOOL GROUP
18288-00T
18288-00T
18288
Weight: 0.01 LBS
Brand: GWS TOOL GROUP
$56.22
(34% off)
$36.88
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

Balax 18288-00T Is A Bxil Thredfloer In-Line Stub Forming Tap For M5 X 0.8 D8 Internal Threads. This Cold-Forming Tap Is Made From Premium High Speed Steel With A Tin Coated Finish And Is Designed For Sheet Metal In-Line Tapping Devices. Balax Thredfloer Taps Form Threads By Displacing Material Rather Than Cutting Chips, Helping Eliminate Chip-Control Problems While Producing Strong, Accurately Gaged Internal Threads. The Thredfloer Design Is Based On Balax Balanced Axially Technology, Which Forms The Lead Crests On Pitch To Help Reduce Axial Thrust, Tapping Torque And Premature Tap Wear. Stub Bottoming Style Design For In-Line Sheet Metal Tapping Devices. Primary Application: Best For Non-Ferrous; Good For Steel & Stainless Steel. Recommended Tap Drill Range: 0.1830" To 0.1860". Key Specifications Include Ansi Cnc Shank/Blank, 0.1940" Shank Diameter, 2.5 Thread Chamfer, Bottoming Style, Right Hand Thread Direction. Tin Coating Adds A Hard, Wear-Resistant Gold Finish For Improved Lubricity And Tool Life. Additional Product Features: Bottoming Style For In-Line Tapping Devices; Designed For Sheet Metal Applications; Ansi Tap Blank Dimensions. Use This Tap When You Need A Reliable Bxil Balax Threading Tool For Consistent M5 X 0.8 Threads, Controlled Thread Fit And Repeatable Shop-Floor Performance. Made In Usa. Balax Part Number 18288-00T.

  • Premium High Speed Steel Construction
  • Bottoming Style for In-Line Tapping Devices
  • Designed for Sheet Metal Applications
  • ANSI Tap Blank Dimensions
  • Tap Drill Range 0.1830" to 0.1860"

This item is part of our complete offering of GWS Tool Group Cutting Tools, a USA manufacturer known for high-performance CNC machining solutions, custom-engineered tooling, and advanced coating technologies. Explore GWS End Mills and Milling Products for high-performance carbide milling, GWS Hole Making Tools for drilling and finishing applications, GWS Threading and Gaging Tools for taps, thread mills, dies, and gages, GWS Blanks, Rods and Strips Solid Carbide for carbide stock solutions, and GWS Armory Tools for specialty firearm component machining applications. GWS Tool Group brings together respected legacy brands including Monster Tool, Balax Taps, and Benchmark HP Carbide End Mills, combining their strengths into a powerful portfolio of milling, holemaking, threading, and specialty cutting tools manufactured in the USA. Visit our full GWS Tool Group Cutting Tools page to explore the complete product range, compare tool geometries, coatings, and performance options, and find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
Hartland, WI
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $14.99 8 LBS
$50.00 UPS Red by 10:30am 1 Business Day $29.99 8 LBS
$98.00 MINIMUM ORDER
If ordered by 1:30pm Eastern Standard Time GWS will Ship Same Business Day
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GWS TOOL GROUP
Manufacturer Part Number
18288-00T
Thread Size
M5 X 0.8
Shank Diameter
0.1940"
Helix Angle
N/A
Type Of Tap
Forming Tap
Thread Direction
Right Hand
Thread Limit
D8
Tap Shank Type
ANSI CNC
Tool Coating
TiN
Tool Substrate Material
Premium High Speed Steel
Primary Application
Best-Non-Ferrous|Good-Steel, Stainless
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
BXIL
Style
Bottoming
Flute End Type
Fluteless
Thread Chamfer
2.5
