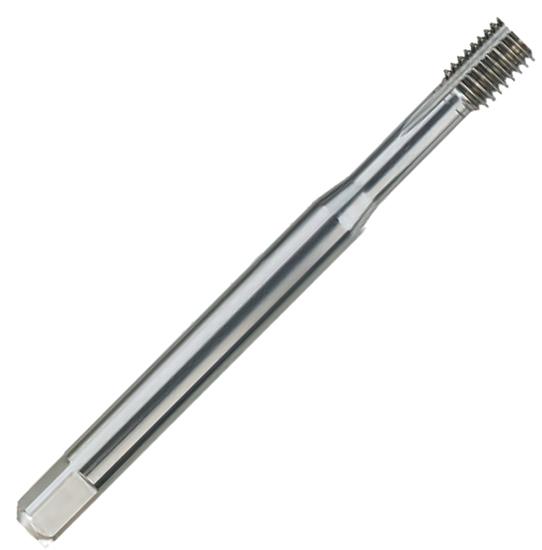

M10 x 1.5 D11 BXDIN Thredfloer DIN Forming Tap, Premium High Speed Steel, Bright for Steel, Non-Ferrous & Stainless Steel - Balax 18831-400

This vendor requires us to bring the item into our Florida warehouse for the following states: AL before shipping to you.
M10 x 1.5 D11 BXDIN Thredfloer DIN Forming Tap, Premium High Speed Steel, Bright for Steel, Non-Ferrous & Stainless Steel - Balax 18831-400
GWS TOOL GROUP
18831-400
18831-400
18831
Weight: 0.11 LBS
Brand: GWS TOOL GROUP
$60.71
(34% off)
$39.83
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Balax 18831-400 Is A Bxdin Thredfloer Din Forming Tap For M10 X 1.5 D11 Internal Threads. This Cold-Forming Tap Is Made From Premium High Speed Steel With A Bright Finish And Is Designed For Din Metric Tapping Applications. Balax Thredfloer Taps Form Threads By Displacing Material Rather Than Cutting Chips, Helping Eliminate Chip-Control Problems While Producing Strong, Accurately Gaged Internal Threads. The Thredfloer Design Is Based On Balax Balanced Axially Technology, Which Forms The Lead Crests On Pitch To Help Reduce Axial Thrust, Tapping Torque And Premature Tap Wear. Din Tap Blank Dimensions With Cold-Forming Geometry. Primary Application: Best For Steel & Non-Ferrous; Good For Stainless Steel. Recommended Tap Drill Range: 0.3660" To 0.3720". Key Specifications Include Din371 Shank/Blank, 0.3810" Shank Diameter, 100Mm Overall Length, 2.5 Thread Chamfer, Bottoming Style, Right Hand Thread Direction. Bright Finish For General-Purpose Use Where An Uncoated Polished Surface Is Preferred. Additional Product Features: Forming Tap Eliminates Chips By Displacing Material To Create Threads; Unique Forming Lobe Geometry Provides Superior Performance; Din Tap Blank Dimensions. Use This Tap When You Need A Reliable Bxdin Balax Threading Tool For Consistent M10 X 1.5 Threads, Controlled Thread Fit And Repeatable Shop-Floor Performance. Made In Usa. Balax Part Number 18831-400.

  • Forming Tap Eliminates Chips by Displacing Material to Create Threads
  • Unique Forming Lobe Geometry Provides Superior Performance
  • DIN Tap Blank Dimensions
  • Tap Drill Range 0.3660" to 0.3720"

This item is part of our complete offering of GWS Tool Group Cutting Tools, a USA manufacturer known for high-performance CNC machining solutions, custom-engineered tooling, and advanced coating technologies. Explore GWS End Mills and Milling Products for high-performance carbide milling, GWS Hole Making Tools for drilling and finishing applications, GWS Threading and Gaging Tools for taps, thread mills, dies, and gages, GWS Blanks, Rods and Strips Solid Carbide for carbide stock solutions, and GWS Armory Tools for specialty firearm component machining applications. GWS Tool Group brings together respected legacy brands including Monster Tool, Balax Taps, and Benchmark HP Carbide End Mills, combining their strengths into a powerful portfolio of milling, holemaking, threading, and specialty cutting tools manufactured in the USA. Visit our full GWS Tool Group Cutting Tools page to explore the complete product range, compare tool geometries, coatings, and performance options, and find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
Hartland, WI
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $14.99 8 LBS
$50.00 UPS Red by 10:30am 1 Business Day $29.99 8 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$98.00 MINIMUM ORDER
If ordered by 1:30pm Eastern Standard Time GWS will Ship Same Business Day
Factory Stock
2
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GWS TOOL GROUP
Manufacturer Part Number
18831-400
Thread Size
M10 X 1.5
Overall Length
100mm
Shank Diameter
0.3810"
Helix Angle
N/A
Type Of Tap
Forming Tap
Thread Direction
Right Hand
Thread Limit
D11
Tap Shank Type
DIN371
Tool Coating
Bright
Tool Substrate Material
Premium High Speed Steel
Primary Application
Best-Steel, Non-Ferrous|Good-Stainless
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
BXDIN
Style
Bottoming
Flute End Type
Fluteless
Thread Chamfer
2.5
