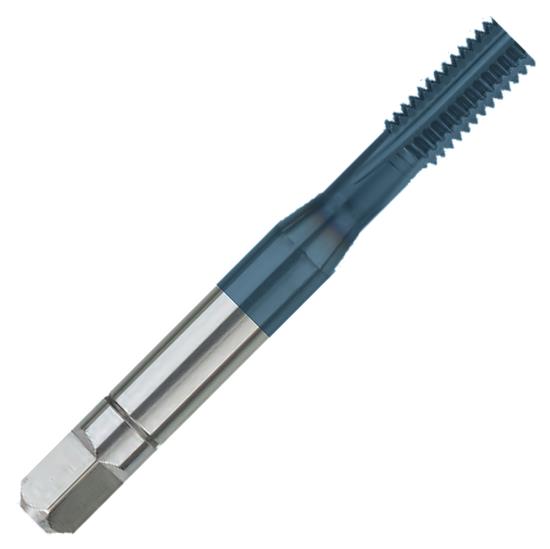

1/2-20 H5 BX600 Thredshaver Straight Flute Cast Iron Cutting Tap, Premium High Speed Steel, TiCN Coated for Cast Iron & Non-Ferrous - Balax 54135-00C

This vendor requires us to bring the item into our Florida warehouse for the following states: AL before shipping to you.

GWS TOOL GROUP

54135-00C

54135

Weight: 0.16 LBS

Brand: GWS TOOL GROUP

$115.92

(37% off)

$73.17

each

Add To My Favorites

Technical Details & Downloads

Product Description

Balax 54135-00C Is A Bx600 Thredshaver Straight Flute Cast Iron Cutting Tap For 1/2-20 H5 Internal Threads. This Thredshaver Cutting Tap Is Made From Premium High Speed Steel With A Ticn Coated Finish And Is Designed For Cast Iron And Die Cast Aluminum. Balax Thredshaver Taps Use Application-Specific Cutting Geometry To Produce Consistent Internal Threads In Production Machining. Straight Flute Cutting Tap Designed For Cast Iron And Die Cast Aluminum. Primary Application: Best For Cast Iron & Non-Ferrous. Key Specifications Include Ansi Shank/Blank, 0.3670" Shank Diameter, 3.3750" 3-3/8" Overall Length, 2 Thread Chamfer, Bottoming Style, Right Hand Thread Direction. Ticn Coating Provides Added Wear Resistance And Lubricity In Production Tapping Applications. Additional Product Features: Straight Flute Tap Designed For Cast Iron And Diecast Aluminum; Ansi Tap Blank Dimensions. Use This Tap When You Need A Reliable Bx600 Balax Threading Tool For Consistent 1/2-20 Threads, Controlled Thread Fit And Repeatable Shop-Floor Performance. Thread Major Diameter Reference: 1/2-20 0.5000". Made In Usa. Balax Part Number 54135-00C.

Straight Flute Tap Designed for Cast Iron and Diecast Aluminum
ANSI Tap Blank Dimensions

This item is part of our complete offering of GWS Tool Group Cutting Tools, a USA manufacturer known for high-performance CNC machining solutions, custom-engineered tooling, and advanced coating technologies. Explore GWS End Mills and Milling Products for high-performance carbide milling, GWS Hole Making Tools for drilling and finishing applications, GWS Threading and Gaging Tools for taps, thread mills, dies, and gages, GWS Blanks, Rods and Strips Solid Carbide for carbide stock solutions, and GWS Armory Tools for specialty firearm component machining applications. GWS Tool Group brings together respected legacy brands including Monster Tool, Balax Taps, and Benchmark HP Carbide End Mills, combining their strengths into a powerful portfolio of milling, holemaking, threading, and specialty cutting tools manufactured in the USA. Visit our full GWS Tool Group Cutting Tools page to explore the complete product range, compare tool geometries, coatings, and performance options, and find the right solution for your application.

Made in U.S.A.

GWS TOOL GROUP Brand Home

Shipping & Delivery Options

Hartland, WI

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$50.00	UPS Blue 2 Business Days	$14.99	8 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$29.99	8 LBS

$98.00 MINIMUM ORDER

If ordered by 1:30pm Eastern Standard Time GWS will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: GWS TOOL GROUP
Manufacturer Part Number: 54135-00C
Thread Size: 0.5000" 1/2-20
Overall Length: 3.3750" 3-3/8"
Shank Diameter: 0.3670"
Helix Angle: N/A
Type Of Tap: CNC Tap
Thread Direction: Right Hand
Thread Limit: H5
Tap Shank Type: ANSI
Tool Coating: TiCN
Tool Substrate Material: Premium High Speed Steel
Primary Application: Best-Cast Iron, Non-Ferrous
Inch Or Metric: Inch
Country of Origin: U.S.A.
Series: BX600
Style: Bottoming
Flute End Type: Straight Flute
Thread Chamfer: 2
