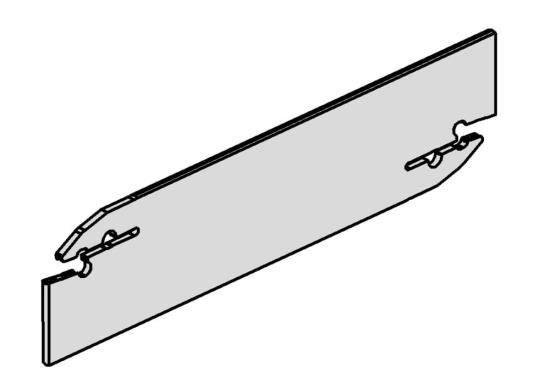

HORN H100.3203.03 Parting-Off Toolholder - Max Groove Depth 1.969 in / 50 mm - Overall Length 5.906 in / 150 mm - PH Horn H100.3203.03

HORN H100.3203.03 Parting-Off Toolholder - Max Groove Depth 1.969 in / 50 mm - Overall Length 5.906 in / 150 mm - PH Horn H100.3203.03
HORN USA, INC.
H100320303
H100.3203.03
H100.3203.03
Toolholders
Brand: HORN USA, INC.
$138.86
each
Add To My Favorites
Technical Details & Downloads
Catalog Page Catalog Page
Product Description

Horn H100.3203.03 Is A Parting-Off Toolholder Engineered For Parting Off Applications. Supported Operations Include External Grooving, Parting Off. Key Selection Specifications: Max Groove Depth 1.969 In / 50 Mm; Overall Length 5.906 In / 150 Mm. Horn Classifies It In The System H100 - Double Ended Product Family.

  • Genuine HORN Parting-Off Toolholder
  • Primary operation: Parting Off
  • Supported applications: External grooving, Parting off
  • Product family: System H100 - Double ended
  • Max Groove Depth 1.969 in / 50 mm
  • Overall Length 5.906 in / 150 mm
  • Manufacturer part number: H100.3203.03
  • Made in Germany

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
H100.3203.03
Overall Length
5.906 in / 150 mm
Thickness
0.091 in / 2.3 mm
Primary Application
Parting Off
Applicable Tool
Static
Height
0.976 in / 24.8 mm
Country of Origin
Germany
Series
System 100
Brand
HORN
Type
Parting-Off Toolholder
Coolant Through
No
Depth Of Cut
1.969 in / 50 mm
Projection Length
0.045 in / 1.15 mm
