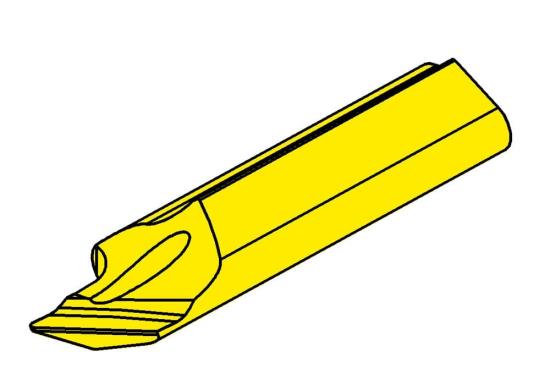

HORN R105.0060.1.1 EG35 Grooving Insert - EG35 AlTiN + TiN Grade for Steel & Cast Iron - Max Groove Depth 0.157 in / 4 mm - Min Bore 0.039 in / 1 mm - Hand Right - PH Horn R105.0060.1.1 EG35

HORN R105.0060.1.1 EG35 Grooving Insert - EG35 AlTiN + TiN Grade for Steel & Cast Iron - Max Groove Depth 0.157 in / 4 mm - Min Bore 0.039 in / 1 mm - Hand Right - PH Horn R105.0060.1.1 EG35
HORN USA, INC.
R105006011EG35
R105.0060.1.1 EG35
R105.0060.1.1 EG35
Inserts
Brand: HORN USA, INC.
$68.79
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R105.0060.1.1 Eg35 Is A Grooving Insert Engineered For Grooving Applications. The Eg35 Grade Uses Altin + Tin-Coated Carbide And Is Suited To Steel And Cast Iron For Finish-Grooving At High Cutting Speeds. Key Selection Specifications: Max Groove Depth 0.157 In / 4 Mm; Min Bore 0.039 In / 1 Mm; Corner Radius 0.008 In / 0.2 Mm; Hand Right; Overall Length 0.984 In / 25 Mm. Horn Classifies It In The Inserts 105 - Chamfering And Grooving Product Family.

  • Genuine HORN Grooving Insert
  • Primary operation: Grooving
  • Cutting grade: EG35
  • Grade coating/substrate: AlTiN + TiN-coated carbide
  • Grade material fit: steel and cast iron
  • Grade application: finish-grooving at high cutting speeds
  • Product family: Inserts 105 - Chamfering and grooving
  • Max Groove Depth 0.157 in / 4 mm
  • Min Bore 0.039 in / 1 mm
  • Corner Radius 0.008 in / 0.2 mm
  • Hand Right
  • Manufacturer part number: R105.0060.1.1 EG35

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R105.0060.1.1 EG35
Minimum Bore
0.039 in / 1 mm
Overall Length
0.984 in / 25 mm
Primary Application
Grooving
Width
0.232 in / 5.9 mm
Applicable Tool
Static
Country of Origin
Germany
Grade
EG35
Series
System 105
Brand
HORN
Type
Grooving Insert
Coolant Through
Yes
Depth Of Cut
0.157 in / 4 mm
Range
0.02 in / 0.5 mm
Hand Direction
Right
