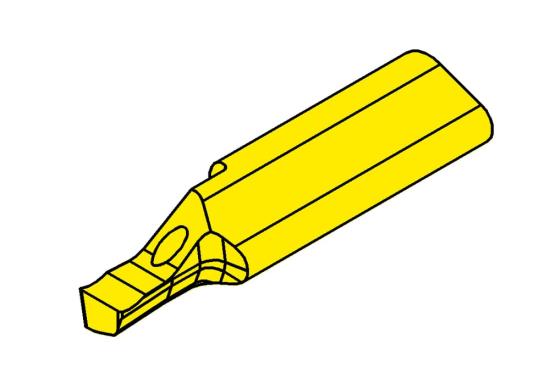

HORN R105.0830.1.9 EG35 Face Grooving Insert - EG35 AlTiN + TiN Grade for Steel & Cast Iron - Groove Width 0.118 in / 3 mm - Max Groove Depth 0.236 in / 6 mm - Hand Right - PH Horn R105.0830.1.9 EG35

HORN R105.0830.1.9 EG35 Face Grooving Insert - EG35 AlTiN + TiN Grade for Steel & Cast Iron - Groove Width 0.118 in / 3 mm - Max Groove Depth 0.236 in / 6 mm - Hand Right - PH Horn R105.0830.1.9 EG35
HORN USA, INC.
R105083019EG35
R105.0830.1.9 EG35
R105.0830.1.9 EG35
Insert
Brand: HORN USA, INC.
$64.02
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R105.0830.1.9 Eg35 Is A Face Grooving Insert Engineered For Face Grooving Applications. Supported Operations Include Face Grooving. The Eg35 Grade Uses Altin + Tin-Coated Carbide And Is Suited To Steel And Cast Iron For Finish-Grooving At High Cutting Speeds. Key Selection Specifications: Groove Width 0.118 In / 3 Mm; Max Groove Depth 0.236 In / 6 Mm; Min Bore 0.315 In / 8 Mm; Corner Radius 0.006 In / 0.15 Mm; Hand Right. Horn Classifies It In The Inserts 105 - Face Grooving From 8.0 Mm Product Family.

  • Genuine HORN Face Grooving Insert
  • Primary operation: Face Grooving
  • Supported applications: Face grooving
  • Cutting grade: EG35
  • Grade coating/substrate: AlTiN + TiN-coated carbide
  • Grade material fit: steel and cast iron
  • Grade application: finish-grooving at high cutting speeds
  • Product family: Inserts 105 - Face grooving from 8.0 mm
  • Groove Width 0.118 in / 3 mm
  • Max Groove Depth 0.236 in / 6 mm
  • Min Bore 0.315 in / 8 mm
  • Corner Radius 0.006 in / 0.15 mm

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R105.0830.1.9 EG35
Minimum Bore
0.315 in / 8 mm
Groove Width
0.118 in / 3 mm
Overall Length
0.984 in / 25 mm
Primary Application
Face Grooving
Width
0.276 in / 7 mm
Applicable Tool
Static
Country of Origin
Germany
Grade
EG35
Series
System 105
Brand
HORN
Type
Face Grooving Insert
Coolant Through
Yes
Depth Of Cut
0.236 in / 6 mm
Projection Length
0.016 in / 0.4 mm
Hand Direction
Right
