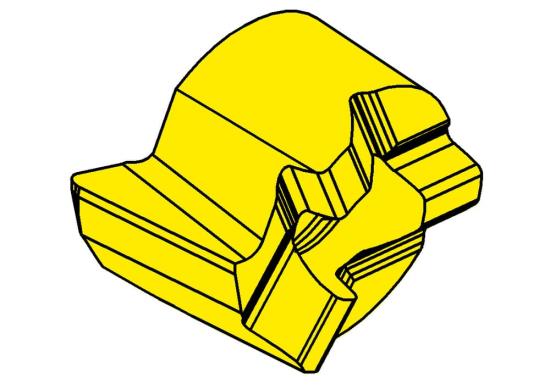

HORN R106.1831.1.005 EG55 Boring Insert - EG55 AlTiN + TiN Grade for Steel & Cast Iron - Min Bore 0.236 in / 6 mm - Corner Radius 0.002 in / 0.05 mm - Hand Right - PH Horn R106.1831.1.005 EG55

HORN R106.1831.1.005 EG55 Boring Insert - EG55 AlTiN + TiN Grade for Steel & Cast Iron - Min Bore 0.236 in / 6 mm - Corner Radius 0.002 in / 0.05 mm - Hand Right - PH Horn R106.1831.1.005 EG55
HORN USA, INC.
R10618311005EG55
R106.1831.1.005 EG55
R106.1831.1.005 EG55
Insert
Brand: HORN USA, INC.
$33.71
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R106.1831.1.005 Eg55 Is A Boring Insert Engineered For Boring Applications. Supported Operations Include Internal Boring. The Eg55 Grade Uses Altin + Tin-Coated Carbide And Is Suited To Steel And Cast Iron For Medium Feeds And Interrupted Cuts. Key Selection Specifications: Min Bore 0.236 In / 6 Mm; Corner Radius 0.002 In / 0.05 Mm; Hand Right. Horn Classifies It In The Inserts 106 - Internal Boring From 6 Mm Product Family.

  • Genuine HORN Boring Insert
  • Primary operation: Boring
  • Supported applications: Internal boring
  • Cutting grade: EG55
  • Grade coating/substrate: AlTiN + TiN-coated carbide
  • Grade material fit: steel and cast iron
  • Grade application: medium feeds and interrupted cuts
  • Product family: Inserts 106 - Internal boring from 6 mm
  • Min Bore 0.236 in / 6 mm
  • Corner Radius 0.002 in / 0.05 mm
  • Hand Right
  • Manufacturer part number: R106.1831.1.005 EG55

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R106.1831.1.005 EG55
Head Diameter
0.173 in / 4.4 mm
Minimum Bore
0.236 in / 6 mm
Thickness
0.11 in / 2.8 mm
Primary Application
Boring
Applicable Tool
Static
Country of Origin
Germany
Grade
EG55
Series
System 106
Brand
HORN
Size
0.213 in / 5.4 mm
Type
Boring Insert
Coolant Through
Yes
Range
0.126 in / 3.2 mm
Hand Direction
Right
