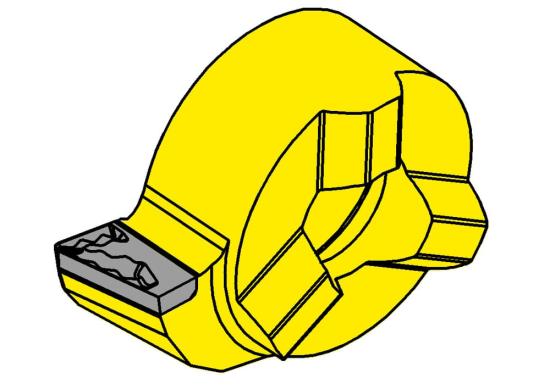

HORN R111.1004.HF.P PD75 Boring Insert - PD75 Polycrystalline diamond (PCD) Grade for Non-Ferrous & Abrasive Materials - Min Bore 0.433 in / 11 mm - Hand Right - PH Horn R111.1004.HF.P PD75

HORN R111.1004.HF.P PD75 Boring Insert - PD75 Polycrystalline diamond (PCD) Grade for Non-Ferrous & Abrasive Materials - Min Bore 0.433 in / 11 mm - Hand Right - PH Horn R111.1004.HF.P PD75
HORN USA, INC.
R1111004HFPPD75
R111.1004.HF.P PD75
R111.1004.HF.P PD75
Insert
Brand: HORN USA, INC.
$159.00
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R111.1004.Hf.P Pd75 Is A Boring Insert Engineered For Boring Applications. Supported Operations Include Internal Boring. The Pd75 Grade Uses Polycrystalline Diamond (Pcd) And Is Suited To Non-Ferrous Metals And Abrasive Plastics For Ultra-Fine Finishing Through Roughing. Key Selection Specifications: Min Bore 0.433 In / 11 Mm; Max Cutting Depth 0.016 In / 0.4 Mm; Corner Radius 0.016 In / 0.4 Mm; Hand Right. Horn Classifies It In The Insert 111 Internal Boring Cvd / Pcd Product Family.

  • Genuine HORN Boring Insert
  • Primary operation: Boring
  • Supported applications: Internal boring
  • Cutting grade: PD75
  • Grade coating/substrate: polycrystalline diamond (PCD)
  • Grade material fit: non-ferrous metals and abrasive plastics
  • Grade application: ultra-fine finishing through roughing
  • Product family: Insert 111 internal boring CVD / PCD
  • Min Bore 0.433 in / 11 mm
  • Max Cutting Depth 0.016 in / 0.4 mm
  • Corner Radius 0.016 in / 0.4 mm
  • Hand Right

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R111.1004.HF.P PD75
Head Diameter
0.315 in / 8 mm
Minimum Bore
0.433 in / 11 mm
Thickness
0.156 in / 3.95 mm
Primary Application
Boring
Applicable Tool
Static
Country of Origin
Germany
Grade
PD75
Brand
HORN
Size
0.421 in / 10.7 mm
Type
Boring Insert
Coolant Through
Yes
Depth Of Cut
0.016 in / 0.4 mm
Range
0.264 in / 6.7 mm
Hand Direction
Right
