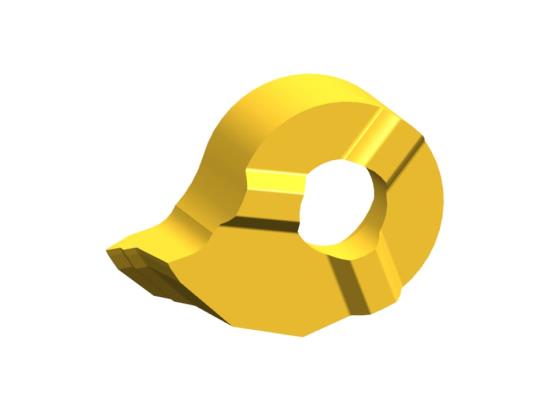

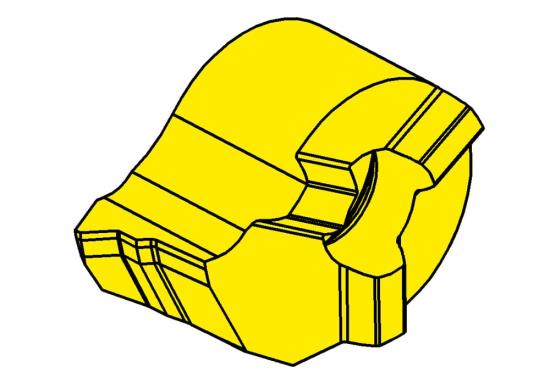

HORN R114.0510.02 EG55 Threading Insert - EG55 AlTiN + TiN Grade for Steel & Cast Iron - Thread Pitch 0.039 in / 1 mm - Min Bore 0.551 in / 14 mm - Hand Right - PH Horn R114.0510.02 EG55

HORN R114.0510.02 EG55 Threading Insert - EG55 AlTiN + TiN Grade for Steel & Cast Iron - Thread Pitch 0.039 in / 1 mm - Min Bore 0.551 in / 14 mm - Hand Right - PH Horn R114.0510.02 EG55 HORN R114.0510.02 EG55 Threading Insert - EG55 AlTiN + TiN Grade for Steel & Cast Iron - Thread Pitch 0.039 in / 1 mm - Min Bore 0.551 in / 14 mm - Hand Right - PH Horn R114.0510.02 EG55
HORN USA, INC.
R114051002EG55
R114.0510.02 EG55
R114.0510.02 EG55
insert
Brand: HORN USA, INC.
$40.81
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R114.0510.02 Eg55 Is A Threading Insert Engineered For Threading Applications. The Eg55 Grade Uses Altin + Tin-Coated Carbide And Is Suited To Steel And Cast Iron For Medium Feeds And Interrupted Cuts. Key Selection Specifications: Thread Pitch 0.039 In / 1 Mm; Min Bore 0.551 In / 14 Mm; Hand Right. Horn Classifies It In The Inserts System 114 Product Family.

  • Genuine HORN Threading Insert
  • Primary operation: Threading
  • Cutting grade: EG55
  • Grade coating/substrate: AlTiN + TiN-coated carbide
  • Grade material fit: steel and cast iron
  • Grade application: medium feeds and interrupted cuts
  • Product family: Inserts System 114
  • Thread Pitch 0.039 in / 1 mm
  • Min Bore 0.551 in / 14 mm
  • Hand Right
  • Manufacturer part number: R114.0510.02 EG55
  • Made in Germany

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
Factory
0
Currently Unavailable

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R114.0510.02 EG55
Head Diameter
0.354 in / 9 mm
Minimum Bore
0.551 in / 14 mm
Thickness
0.217 in / 5.5 mm
Primary Application
Threading
Width
0.531 in / 13.5 mm
Applicable Tool
Static
Inch Or Metric
Metric
Country of Origin
Germany
Grade
EG55
Series
System 114
Brand
HORN
Type
Threading Insert
Gage Length
0.185 in / 4.7 mm
Thread Pitch
0.039 in / 1 mm
Coolant Through
Yes
Range
0.354 in / 9 mm
Hand Direction
Right
