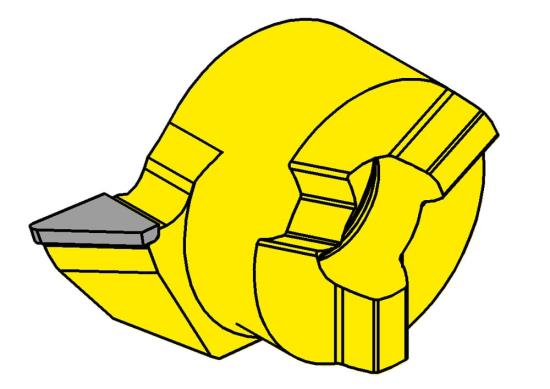

HORN R114.MDM0.08 MD10 Boring Insert - MD10 Monocrystalline diamond (MCD) Grade for High-Polish Non-Ferrous Machining - Min Bore 0.543 in / 13.8 mm - Hand Right - PH Horn R114.MDM0.08 MD10

HORN R114.MDM0.08 MD10 Boring Insert - MD10 Monocrystalline diamond (MCD) Grade for High-Polish Non-Ferrous Machining - Min Bore 0.543 in / 13.8 mm - Hand Right - PH Horn R114.MDM0.08 MD10
HORN USA, INC.
R114MDM008MD10
R114.MDM0.08 MD10
R114.MDM0.08 MD10
Insert
Brand: HORN USA, INC.
$1,469.16
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R114.Mdm0.08 Md10 Is A Boring Insert Engineered For Boring Applications. Supported Operations Include Internal Boring, Profiling. The Md10 Grade Uses Monocrystalline Diamond (Mcd) And Is Suited To Non-Ferrous Metals, Non-Abrasive Plastics And Precious Alloys For Polish And High-Polish Machining. Key Selection Specifications: Min Bore 0.543 In / 13.8 Mm; Max Cutting Depth 0.035 In / 0.9 Mm; Corner Radius 0.031 In / 0.8 Mm; Hand Right. Horn Classifies It In The Insert 114 Internal Boring Cvd / Pcd Product Family.

  • Genuine HORN Boring Insert
  • Primary operation: Boring
  • Supported applications: Internal boring, Profiling
  • Cutting grade: MD10
  • Grade coating/substrate: monocrystalline diamond (MCD)
  • Grade material fit: non-ferrous metals, non-abrasive plastics and precious alloys
  • Grade application: polish and high-polish machining
  • Product family: Insert 114 internal boring CVD / PCD
  • Min Bore 0.543 in / 13.8 mm
  • Max Cutting Depth 0.035 in / 0.9 mm
  • Corner Radius 0.031 in / 0.8 mm
  • Hand Right

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
Factory
0
Currently Unavailable

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R114.MDM0.08 MD10
Head Diameter
0.354 in / 9 mm
Minimum Bore
0.543 in / 13.8 mm
Thickness
0.209 in / 5.3 mm
Primary Application
Boring
Applicable Tool
Static
Cutter Width
0.098 in / 2.5 mm
Country of Origin
Germany
Grade
MD10
Brand
HORN
Size
0.531 in / 13.5 mm
Type
Boring Insert
Coolant Through
Yes
Depth Of Cut
0.035 in / 0.9 mm
Range
0.343 in / 8.7 mm
Hand Direction
Right
