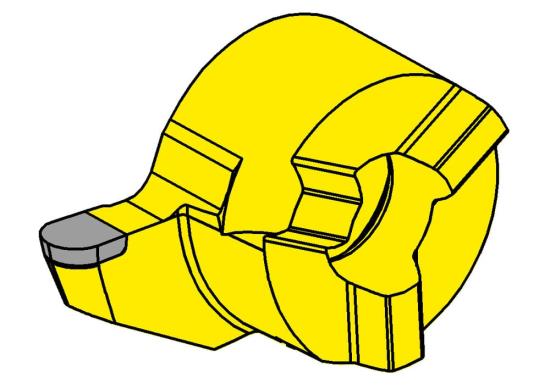

HORN R114.VR30.H5.P PD75 Boring Insert - PD75 Polycrystalline diamond (PCD) Grade for Non-Ferrous & Abrasive Materials - Min Bore 0.551 in / 14 mm - Hand Right - PH Horn R114.VR30.H5.P PD75

HORN R114.VR30.H5.P PD75 Boring Insert - PD75 Polycrystalline diamond (PCD) Grade for Non-Ferrous & Abrasive Materials - Min Bore 0.551 in / 14 mm - Hand Right - PH Horn R114.VR30.H5.P PD75
HORN USA, INC.
R114VR30H5PPD75
R114.VR30.H5.P PD75
R114.VR30.H5.P PD75
Insert
Brand: HORN USA, INC.
$160.06
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R114.Vr30.H5.P Pd75 Is A Boring Insert Engineered For Boring Applications. Supported Operations Include Internal Grooving, Internal Boring. The Pd75 Grade Uses Polycrystalline Diamond (Pcd) And Is Suited To Non-Ferrous Metals And Abrasive Plastics For Ultra-Fine Finishing Through Roughing. Key Selection Specifications: Min Bore 0.551 In / 14 Mm; Max Cutting Depth 0.157 In / 4 Mm; Corner Radius 0.059 In / 1.5 Mm; Hand Right. Horn Classifies It In The Inserts System 114 Internal Boring Cvd/Pcd Diamond Product Family.

  • Genuine HORN Boring Insert
  • Primary operation: Boring
  • Supported applications: Internal grooving, Internal boring
  • Cutting grade: PD75
  • Grade coating/substrate: polycrystalline diamond (PCD)
  • Grade material fit: non-ferrous metals and abrasive plastics
  • Grade application: ultra-fine finishing through roughing
  • Product family: Inserts System 114 internal boring CVD/PCD diamond
  • Min Bore 0.551 in / 14 mm
  • Max Cutting Depth 0.157 in / 4 mm
  • Corner Radius 0.059 in / 1.5 mm
  • Hand Right

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
Factory
0
Currently Unavailable

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R114.VR30.H5.P PD75
Head Diameter
0.354 in / 9 mm
Minimum Bore
0.551 in / 14 mm
Groove Width
0.118 in / 3 mm
Thickness
0.209 in / 5.3 mm
Primary Application
Boring
Applicable Tool
Static
Country of Origin
Germany
Grade
PD75
Brand
HORN
Size
0.531 in / 13.5 mm
Type
Boring Insert
Coolant Through
Yes
Depth Of Cut
0.157 in / 4 mm
Range
0.354 in / 9 mm
Hand Direction
Right
