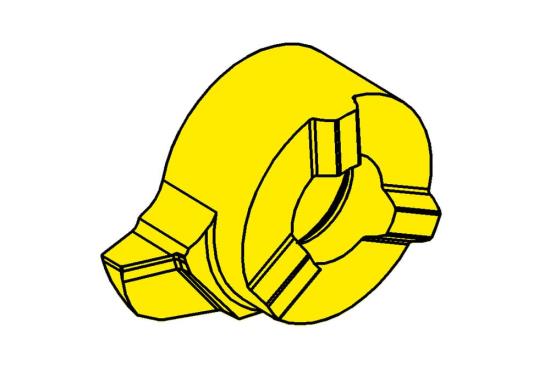

HORN L116.1220.01 TN35 Threading Insert - TN35 TiN Grade for Steel, Stainless & Exotic Alloys - Thread Pitch 0.079 in / 2 mm - Min Bore 0.63 in / 16 mm - Hand Left - PH Horn L116.1220.01 TN35

HORN L116.1220.01 TN35 Threading Insert - TN35 TiN Grade for Steel, Stainless & Exotic Alloys - Thread Pitch 0.079 in / 2 mm - Min Bore 0.63 in / 16 mm - Hand Left - PH Horn L116.1220.01 TN35
HORN USA, INC.
L116122001TN35
L116.1220.01 TN35
L116.1220.01 TN35
Inserts
Brand: HORN USA, INC.
$47.06
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn L116.1220.01 Tn35 Is A Threading Insert Engineered For Threading Applications. The Tn35 Grade Uses Tin-Coated Carbide And Is Suited To Steel, Stainless Steel And Exotic Alloys For Low To Medium Cutting Speeds, Including Interrupted Cuts. Key Selection Specifications: Thread Pitch 0.079 In / 2 Mm; Min Bore 0.63 In / 16 Mm; Hand Left. Horn Classifies It In The Inserts 116 - Threading Metric Iso Trapezoidal Thread Din 103, Partial Profile Product Family.

  • Genuine HORN Threading Insert
  • Primary operation: Threading
  • Cutting grade: TN35
  • Grade coating/substrate: TiN-coated carbide
  • Grade material fit: steel, stainless steel and exotic alloys
  • Grade application: low to medium cutting speeds, including interrupted cuts
  • Product family: Inserts 116 - Threading metric ISO trapezoidal thread DIN 103, partial profile
  • Thread Pitch 0.079 in / 2 mm
  • Min Bore 0.63 in / 16 mm
  • Hand Left
  • Manufacturer part number: L116.1220.01 TN35
  • Made in Germany

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
Factory
0
Currently Unavailable

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
L116.1220.01 TN35
Head Diameter
0.433 in / 11 mm
Minimum Bore
0.63 in / 16 mm
Thickness
0.217 in / 5.5 mm
Primary Application
Threading
Width
0.598 in / 15.2 mm
Applicable Tool
Static
Country of Origin
Germany
Grade
TN35
Series
System 116
Brand
HORN
Type
Threading Insert
Gage Length
0.177 in / 4.5 mm
Thread Pitch
0.079 in / 2 mm
Coolant Through
Yes
Range
0.382 in / 9.7 mm
Hand Direction
Left
