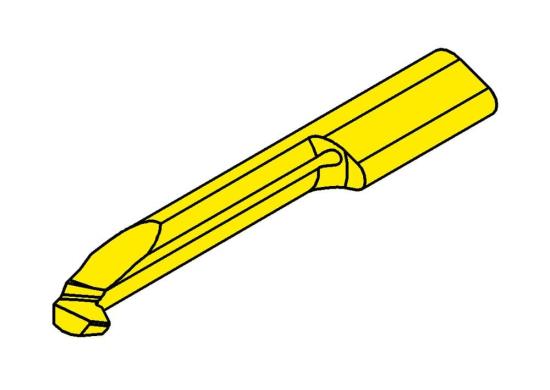

HORN R105.0510.2.6 TN35 Threading Insert - TN35 TiN Grade for Steel, Stainless & Exotic Alloys - Thread Pitch 0.039 in / 1 mm - Min Bore 0.236 in / 6 mm - Hand Right - PH Horn R105.0510.2.6 TN35

HORN R105.0510.2.6 TN35 Threading Insert - TN35 TiN Grade for Steel, Stainless & Exotic Alloys - Thread Pitch 0.039 in / 1 mm - Min Bore 0.236 in / 6 mm - Hand Right - PH Horn R105.0510.2.6 TN35
HORN USA, INC.
R105051026TN35
R105.0510.2.6 TN35
R105.0510.2.6 TN35
Inserts
Brand: HORN USA, INC.
$47.49
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R105.0510.2.6 Tn35 Is A Threading Insert Engineered For Threading Applications. The Tn35 Grade Uses Tin-Coated Carbide And Is Suited To Steel, Stainless Steel And Exotic Alloys For Low To Medium Cutting Speeds, Including Interrupted Cuts. Key Selection Specifications: Thread Pitch 0.039 In / 1 Mm; Min Bore 0.236 In / 6 Mm; Hand Right; Overall Length 1.181 In / 30 Mm. Horn Classifies It In The Threading Metric Iso Thread (Internal), Partial Profile Product Family.

  • Genuine HORN Threading Insert
  • Primary operation: Threading
  • Cutting grade: TN35
  • Grade coating/substrate: TiN-coated carbide
  • Grade material fit: steel, stainless steel and exotic alloys
  • Grade application: low to medium cutting speeds, including interrupted cuts
  • Product family: Threading metric ISO thread (internal), partial profile
  • Thread Pitch 0.039 in / 1 mm
  • Min Bore 0.236 in / 6 mm
  • Hand Right
  • Overall Length 1.181 in / 30 mm
  • Manufacturer part number: R105.0510.2.6 TN35

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R105.0510.2.6 TN35
Minimum Bore
0.236 in / 6 mm
Overall Length
1.181 in / 30 mm
Primary Application
Threading
Width
0.224 in / 5.7 mm
Applicable Tool
Static
Country of Origin
Germany
Grade
TN35
Series
System 105
Brand
HORN
Type
Threading Insert
Gage Length
0.022 in / 0.55 mm
Thread Pitch
0.039 in / 1 mm
Neck Diameter
0.146 in / 3.7 mm
Coolant Through
Yes
Range
0.13 in / 3.3 mm
Hand Direction
Right
