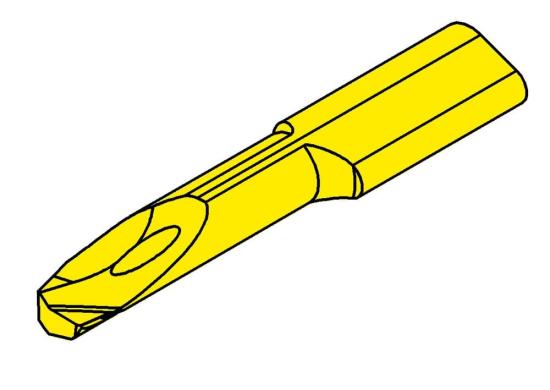

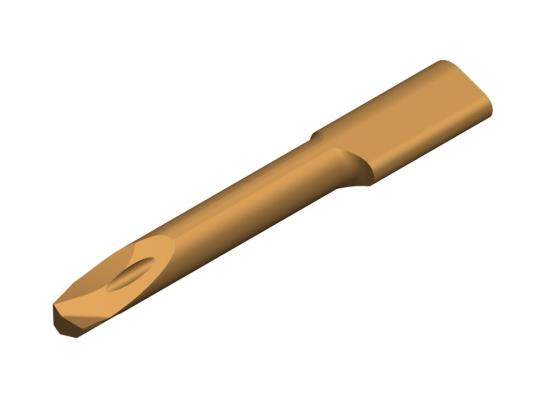

HORN R105.1023.5.5 TH35 Boring Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Min Bore 0.197 in / 5 mm - Max Cutting Depth 0.006 in / 0.15 mm - Hand Right - PH Horn R105.1023.5.5 TH35

HORN R105.1023.5.5 TH35 Boring Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Min Bore 0.197 in / 5 mm - Max Cutting Depth 0.006 in / 0.15 mm - Hand Right - PH Horn R105.1023.5.5 TH35 HORN R105.1023.5.5 TH35 Boring Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Min Bore 0.197 in / 5 mm - Max Cutting Depth 0.006 in / 0.15 mm - Hand Right - PH Horn R105.1023.5.5 TH35
HORN USA, INC.
R105102355TH35
R105.1023.5.5 TH35
R105.1023.5.5 TH35
Insert
Brand: HORN USA, INC.
$63.28
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R105.1023.5.5 Th35 Is A Boring Insert Engineered For Boring Applications. Supported Operations Include Internal Boring. The Th35 Grade Uses Tialn-Coated Carbide And Is Suited To Steel, Stainless Steel And Cast Iron For Medium Feeds And Interrupted Cuts With High Oxidation Resistance. Key Selection Specifications: Min Bore 0.197 In / 5 Mm; Max Cutting Depth 0.006 In / 0.15 Mm; Corner Radius 0.008 In / 0.2 Mm; Hand Right; Overall Length 1.772 In / 45 Mm. Horn Classifies It In The Inserts 105 - Internal Boring From 4.0 Mm - Reinforced Version Product Family.

  • Genuine HORN Boring Insert
  • Primary operation: Boring
  • Supported applications: Internal boring
  • Cutting grade: TH35
  • Grade coating/substrate: TiAlN-coated carbide
  • Grade material fit: steel, stainless steel and cast iron
  • Grade application: medium feeds and interrupted cuts with high oxidation resistance
  • Product family: Inserts 105 - Internal boring from 4.0 mm - reinforced version
  • Min Bore 0.197 in / 5 mm
  • Max Cutting Depth 0.006 in / 0.15 mm
  • Corner Radius 0.008 in / 0.2 mm
  • Hand Right

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R105.1023.5.5 TH35
Minimum Bore
0.197 in / 5 mm
Overall Length
1.772 in / 45 mm
Primary Application
Boring
Width
0.276 in / 7 mm
Applicable Tool
Static
Country of Origin
Germany
Grade
TH35
Series
System 105
Brand
HORN
Size
0.185 in / 4.7 mm
Type
Boring Insert
Neck Diameter
0.173 in / 4.4 mm
Coolant Through
Yes
Depth Of Cut
0.006 in / 0.15 mm
Range
0.11 in / 2.8 mm
Hand Direction
Right
