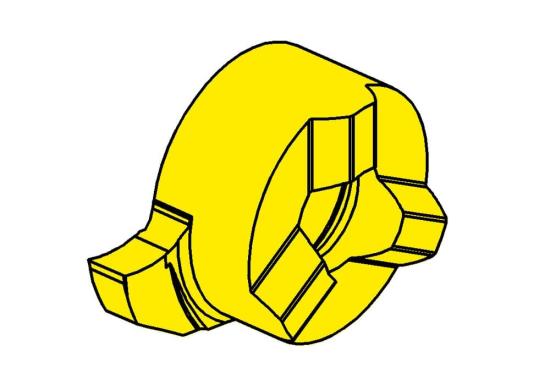

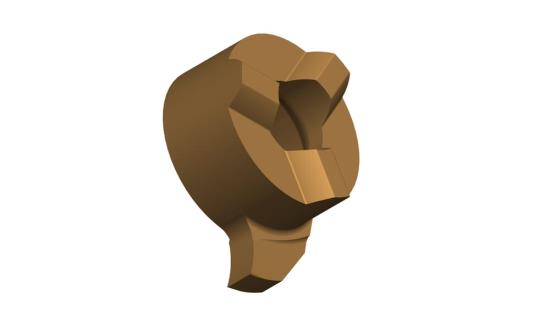

HORN R111.0130.00 TH35 Grooving Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Groove Width 0.055 in / 1.39 mm - Max Groove Depth 0.091 in / 2.3 mm - PH Horn R111.0130.00 TH35

HORN R111.0130.00 TH35 Grooving Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Groove Width 0.055 in / 1.39 mm - Max Groove Depth 0.091 in / 2.3 mm - PH Horn R111.0130.00 TH35 HORN R111.0130.00 TH35 Grooving Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Groove Width 0.055 in / 1.39 mm - Max Groove Depth 0.091 in / 2.3 mm - PH Horn R111.0130.00 TH35
HORN USA, INC.
R111013000TH35
R111.0130.00 TH35
R111.0130.00 TH35
insert
Brand: HORN USA, INC.
$25.86
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R111.0130.00 Th35 Is A Grooving Insert Engineered For Grooving Applications. Supported Operations Include Internal Grooving, Retaining-Ring Grooves. The Th35 Grade Uses Tialn-Coated Carbide And Is Suited To Steel, Stainless Steel And Cast Iron For Pre- And Finish-Grooving At Medium Cutting Speeds, Including Dry Machining. Key Selection Specifications: Groove Width 0.055 In / 1.39 Mm; Max Groove Depth 0.091 In / 2.3 Mm; Min Bore 0.433 In / 11 Mm; Hand Right. Horn Classifies It In The Inserts System 111 Product Family.

  • Genuine HORN Grooving Insert
  • Primary operation: Grooving
  • Supported applications: Internal grooving, Retaining-ring grooves
  • Cutting grade: TH35
  • Grade coating/substrate: TiAlN-coated carbide
  • Grade material fit: steel, stainless steel and cast iron
  • Grade application: pre- and finish-grooving at medium cutting speeds, including dry machining
  • Product family: Inserts System 111
  • Groove Width 0.055 in / 1.39 mm
  • Max Groove Depth 0.091 in / 2.3 mm
  • Min Bore 0.433 in / 11 mm
  • Hand Right

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R111.0130.00 TH35
Head Diameter
0.315 in / 8 mm
Cutter Diameter
0.528 in / 13.4 mm
Minimum Bore
0.433 in / 11 mm
Groove Width
0.055 in / 1.39 mm
Thickness
0.156 in / 3.95 mm
Primary Application
Grooving
Width
0.421 in / 10.7 mm
Applicable Tool
Static
Inch Or Metric
Metric
Country of Origin
Germany
Grade
TH35
Series
System 111
Brand
HORN
Type
Grooving Insert
Coolant Through
Yes
Depth Of Cut
0.091 in / 2.3 mm
Range
0.051 in / 1.3 mm
Hand Direction
Right
