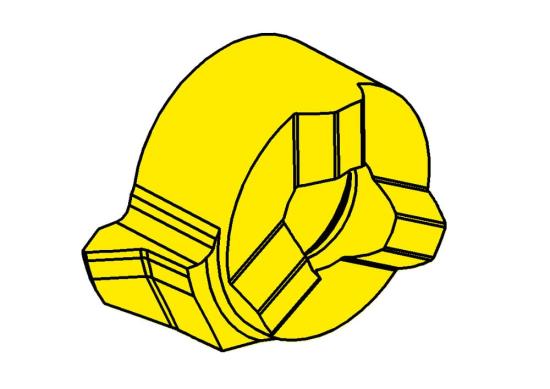

HORN R111.0205.01 TH35 Thread Milling Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Thread Pitch 0.02 in / 0.5 mm - Min Bore 0.433 in / 11 mm - Hand Right - PH Horn R111.0205.01 TH35

HORN R111.0205.01 TH35 Thread Milling Insert - TH35 TiAlN Grade for Steel, Stainless & Cast Iron - Thread Pitch 0.02 in / 0.5 mm - Min Bore 0.433 in / 11 mm - Hand Right - PH Horn R111.0205.01 TH35
HORN USA, INC.
R111020501TH35
R111.0205.01 TH35
R111.0205.01 TH35
insert
Brand: HORN USA, INC.
$34.03
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R111.0205.01 Th35 Is A Thread Milling Insert Engineered For Thread Milling Applications. The Th35 Grade Uses Tialn-Coated Carbide And Is Suited To Steel, Stainless Steel And Cast Iron For Medium Feeds And Interrupted Cuts With High Oxidation Resistance. Key Selection Specifications: Thread Pitch 0.02 In / 0.5 Mm; Min Bore 0.433 In / 11 Mm; Hand Right. Horn Classifies It In The System M308 Product Family.

  • Genuine HORN Thread Milling Insert
  • Primary operation: Thread Milling
  • Cutting grade: TH35
  • Grade coating/substrate: TiAlN-coated carbide
  • Grade material fit: steel, stainless steel and cast iron
  • Grade application: medium feeds and interrupted cuts with high oxidation resistance
  • Product family: System M308
  • Thread Pitch 0.02 in / 0.5 mm
  • Min Bore 0.433 in / 11 mm
  • Hand Right
  • Manufacturer part number: R111.0205.01 TH35
  • Made in Germany

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R111.0205.01 TH35
Head Diameter
0.315 in / 8 mm
Cutter Diameter
0.528 in / 13.4 mm
Minimum Bore
0.433 in / 11 mm
Thickness
0.163 in / 4.15 mm
Primary Application
Thread Milling
Width
0.421 in / 10.7 mm
Applicable Tool
Rotating
Inch Or Metric
Metric
Country of Origin
Germany
Grade
TH35
Series
System M308
Brand
HORN
Type
Thread Milling Insert
Gage Length
0.138 in / 3.5 mm
Thread Pitch
0.02 in / 0.5 mm
Coolant Through
Yes
Range
0.264 in / 6.7 mm
Hand Direction
Right
