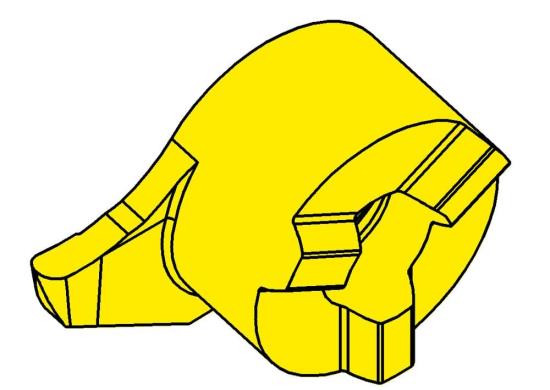

HORN R114.0011.22 TN35 Grooving Insert - TN35 TiN Grade for Steel, Stainless & Exotic Alloys - Groove Width 0.087 in / 2.2 mm - Max Groove Depth 0.157 in / 4 mm - PH Horn R114.0011.22 TN35

HORN R114.0011.22 TN35 Grooving Insert - TN35 TiN Grade for Steel, Stainless & Exotic Alloys - Groove Width 0.087 in / 2.2 mm - Max Groove Depth 0.157 in / 4 mm - PH Horn R114.0011.22 TN35
HORN USA, INC.
R114001122TN35
R114.0011.22 TN35
R114.0011.22 TN35
Inserts
Brand: HORN USA, INC.
$33.39
each
Add To My Favorites
Technical Details & Downloads
Product Description

Horn R114.0011.22 Tn35 Is A Grooving Insert Engineered For Grooving Applications. Supported Operations Include Internal Grooving. The Tn35 Grade Uses Tin-Coated Carbide And Is Suited To Steel, Stainless Steel And Exotic Alloys For Pre- And Finish-Grooving At Moderate Cutting Speeds. Key Selection Specifications: Groove Width 0.087 In / 2.2 Mm; Max Groove Depth 0.157 In / 4 Mm; Min Bore 0.551 In / 14 Mm; Corner Radius 0.043 In / 1.1 Mm; Hand Right. Horn Classifies It In The Inserts 114 - Grooving Full Radius Product Family.

  • Genuine HORN Grooving Insert
  • Primary operation: Grooving
  • Supported applications: Internal grooving
  • Cutting grade: TN35
  • Grade coating/substrate: TiN-coated carbide
  • Grade material fit: steel, stainless steel and exotic alloys
  • Grade application: pre- and finish-grooving at moderate cutting speeds
  • Product family: Inserts 114 - Grooving Full radius
  • Groove Width 0.087 in / 2.2 mm
  • Max Groove Depth 0.157 in / 4 mm
  • Min Bore 0.551 in / 14 mm
  • Corner Radius 0.043 in / 1.1 mm

This item is part of our complete offering of PH Horn USA Cutting Tools, engineered for high-precision CNC grooving, parting, turning, broaching, internal machining and milling. Explore the PH Horn Grooving and Broaching Interactive Catalog for grooving, parting, boring, longitudinal turning and broaching systems, the PH Horn Supermini Internal Machining Interactive Catalog for small-diameter bores, internal grooves, threading and chamfering, and the PH Horn Milling Interactive Catalog for indexable and solid carbide milling solutions. You can also visit our main PH Horn USA Cutting Tools page to review the complete offering and compare tools, holders, inserts, geometries and carbide grades for your application.

Made in Germany
Shipping & Delivery Options
FRANKLIN, TN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$150.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Horn will ship s ame business day
In Stock
Add to Cart

Additional Product Details

Technical Details

Manufacturer
HORN USA, INC.
Manufacturer Part Number
R114.0011.22 TN35
Head Diameter
0.354 in / 9 mm
Minimum Bore
0.551 in / 14 mm
Groove Width
0.087 in / 2.2 mm
Thickness
0.209 in / 5.3 mm
Primary Application
Grooving
Applicable Tool
Static
Country of Origin
Germany
Grade
TN35
Series
System 114
Brand
HORN
Size
0.531 in / 13.5 mm
Type
Grooving Insert
Coolant Through
Yes
Depth Of Cut
0.157 in / 4 mm
Range
0.354 in / 9 mm
Hand Direction
Right
