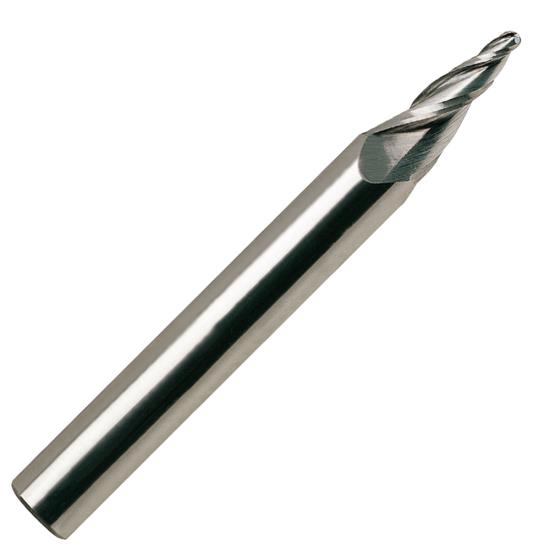

3/16" 3 Flute Ball Nose 7° Per Side Tapered Carbide End Mill, 1-1/4"LOC, 1/2"Shank, 4"OAL, 30° Helix, Bright Finish For General Multi-Purpose Use

3/16" 3 Flute Ball Nose 7° Per Side Tapered Carbide End Mill, 1-1/4"LOC, 1/2"Shank, 4"OAL, 30° Helix, Bright Finish For General Multi-Purpose Use
YG-1 TOOL CO.
88902
88902
88902
0.1875" 3/16"
Weight: 0.059 LBS
Brand: YG-1 TOOL CO.
$152.53
(30% off)
$106.97
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

3/16" 3 Flute Ball Nose 7° Per Side Tapered Carbide End Mill, 1-1/4"Loc, 1/2"Shank, 4"Oal, 30° Helix, Bright Finish For General Multi-Purpose Use

  • YG-1 Series E5078: Inch size general purpose micrograin carbide tapered end mills, plain shank, 3 flutes, 30° helix, center cutting, single end, ball nose, regular length, available with various center line angles and coatings.
  • Designed for milling die cavities, contour milling and machining angled features.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
37
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
88902
Tool Diameter
0.1875" 3/16"
Tip Diameter
0.1875" 3/16"
Length Of Cut
1.250"
Overall Length
4.000"
Shank Diameter
0.5000" 1/2"
Length Below Shank
0.000"
Tip Radius
0.0938"
Radius Size
Ball
Corner Radius
Ball
Number Of Flutes
3
Helix Angle
30°
End Style
Ball
Tool Coating
None
Tool Substrate Material
Carbide
Primary Application
General Purpose
Max Reach
0.000"
Angle Per Side
7°
Hand Cutting Direction
Right Hand
Included Angle
14°
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
E5078
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Tapered
Model
GP CARBIDE END MILL
Shank Type
Plain Shank
Helix Type
Equal Index
