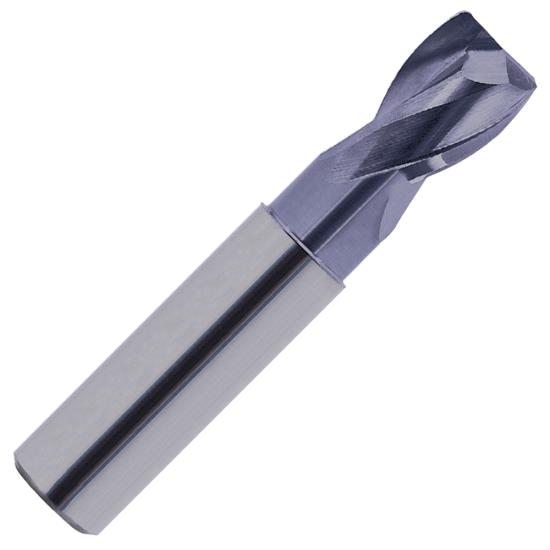

12mm 2 Flute Carbide End Mill, 1.00mm Corner Radius, 12mm Plain Shank, 14mm LOC, 40mm Reach With Reduced Neck, 90mm OAL. YG-1 ALU-POWER 30° Helix, TiCN Coated For Aluminum

12mm 2 Flute Carbide End Mill, 1.00mm Corner Radius, 12mm Plain Shank, 14mm LOC, 40mm Reach With Reduced Neck, 90mm OAL. YG-1 ALU-POWER 30° Helix, TiCN Coated For Aluminum 12mm 2 Flute Carbide End Mill, 1.00mm Corner Radius, 12mm Plain Shank, 14mm LOC, 40mm Reach With Reduced Neck, 90mm OAL. YG-1 ALU-POWER 30° Helix, TiCN Coated For Aluminum 12mm 2 Flute Carbide End Mill, 1.00mm Corner Radius, 12mm Plain Shank, 14mm LOC, 40mm Reach With Reduced Neck, 90mm OAL. YG-1 ALU-POWER 30° Helix, TiCN Coated For Aluminum
YG-1 TOOL CO.
EG909120
EG909120
EG909120
0.4724" 12mm
Weight: 0.33 LBS
Brand: YG-1 TOOL CO.
$204.96
(38% off)
$128.10
each
9/30/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

12Mm 2 Flute Carbide End Mill, 1.00Mm Corner Radius, 12Mm Plain Shank, 14Mm Loc, 40Mm Reach With Reduced Neck, 90Mm Oal. Yg-1 Alu-Power 30° Helix, Ticn Coated For Aluminum. Yg-1'S Alu-Power Carbide End Mills Are Designed For High Performance Silent Cutting Of Aluminum, Aluminum Alloys & Other Non-Ferrous Materials. Special Geometry Designed With Tightly Controlled Cylindrical Margin, Eccentric Primary Relief, Larger Chip Pockets And Polished Flutes Result In A High Rigidity Cutting Edge For Improved Surface Roughness And Excellent Chip Removal While Imparting An Excellent Mirror-Face Finish.

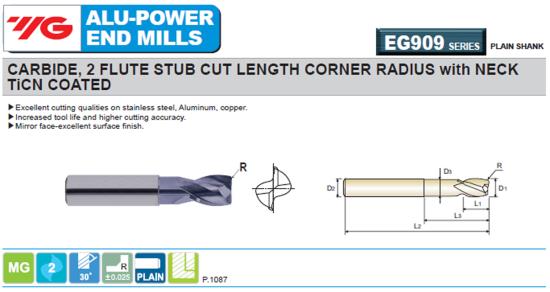

  • YG-1 ALU-POWER Series EG909: Metric Size Micrograin Carbide End Mills, 30° Helix, Plain Shank, 2 Flute, Stub Cut Length, Reduced Neck Diameter, Extended Reach, Corner Radius, TiCN Coated
  • Designed for the machining of aluminum, its alloys and non-ferrous materials.
  • Increased tool life and higher cutting accuracy.
  • Maximum stock removal, chip ejection and stability.
  • Corner Radius for avoiding chipping the corners.
  • Excellent mirror-face surface finishes.
  • Reduced neck diameter prevents wall interference, facilitating step milling in deep pockets or long reach applications.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
32
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
EG909120
Tool Diameter
0.4724" 12mm
Length Of Cut
0.551" 14mm
Overall Length
3.543" 90mm
Shank Diameter
0.4724" 12mm
Length Below Shank
1.574" 40mm
Radius Size
1.00mm
Corner Radius
1.00mm
Number Of Flutes
2
Helix Angle
30°
End Style
Radius
Tool Coating
TiCN
Tool Substrate Material
Carbide
Primary Application
Aluminum Alloys
Max Reach
1.574" 40mm
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
EG909
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
ALU-POWER
Shank Type
Plain Shank
Helix Type
Equal Index
