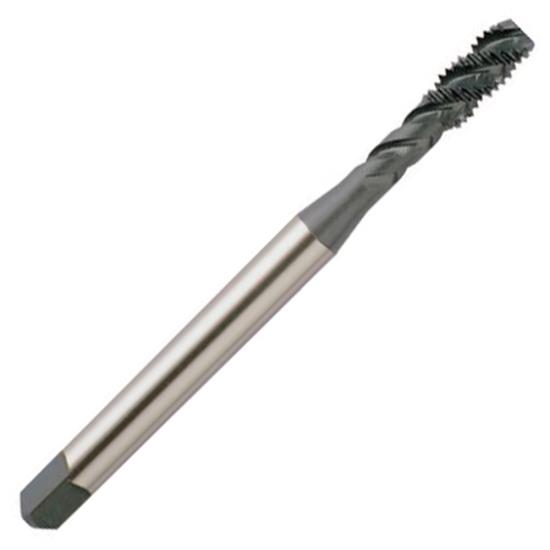

M8 x 1.25 D5 DIN Length 2 Flute 50° Spiral Flute Modified Bottom Tap HSSE-V3 w/Steam Oxide For Aluminum & Die Cast

M8 x 1.25 D5 DIN Length 2 Flute 50° Spiral Flute Modified Bottom Tap HSSE-V3 w/Steam Oxide For Aluminum & Die Cast M8 x 1.25 D5 DIN Length 2 Flute 50° Spiral Flute Modified Bottom Tap HSSE-V3 w/Steam Oxide For Aluminum & Die Cast M8 x 1.25 D5 DIN Length 2 Flute 50° Spiral Flute Modified Bottom Tap HSSE-V3 w/Steam Oxide For Aluminum & Die Cast
YG-1 TOOL CO.
F0365
F0365
F0365
M8 x 1.25 DIN LENGTH
Weight: 0.083 LBS
Brand: YG-1 TOOL CO.
$53.06
(30% off)
$37.22
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

M8 X 1.25 D5 Din Length 2 Flute 50° Spiral Flute Modified Bottom Tap Hsse-V3 W/Steam Oxide For Aluminum & Die Cast 50° Helix, Right Hand Spiral, Ansi Shank Cnc Style Din Length Tap For Aluminum Alloys And Die Cast Aluminum Yg-1 Part # F0365


This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
F0365
Number Of Flutes
2
Helix Angle
50°
Thread Direction
Right Hand
Thread Limit
D5
Tap Shank Type
DIN Length USCTI Shank CNC Tap
Tool Coating
Steam Oxide Finish
Tool Substrate Material
HSS-E
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
F0
Style
Spiral Flute Modified Bottom DIN Length
Thread Chamfer
2-3 Pitch Lead
Type
YG TAP ALU
Coolant Through
No Coolant Hole
