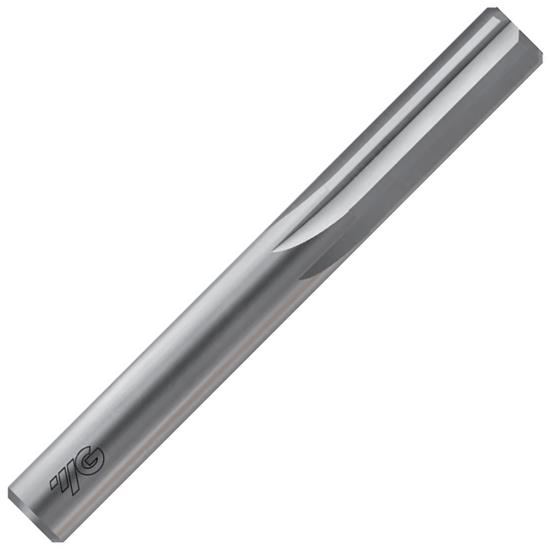

#23 (0.1540") Diameter Straight Flute Straight Shank Solid Carbide Chucking Reamer - 0.1540" Shank Diameter x 3/4" Flute Length x 2-1/2" Overall Length, 4 Flutes. YG-1 Part #K910201540

In observance of Independence Day, this vendor will be closed on Friday, July 3rd. Orders and shipping may be delayed. Normal business will resume on Monday, July 6th.
#23 (0.1540") Diameter Straight Flute Straight Shank Solid Carbide Chucking Reamer - 0.1540" Shank Diameter x 3/4" Flute Length x 2-1/2" Overall Length, 4 Flutes. YG-1 Part #K910201540
YG-1 TOOL CO.
K910201540
K910201540
K910201540
0.1540" #23
Weight: 0.025 LBS
Brand: YG-1 TOOL CO.
$46.23
(31% off)
$32.10
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Speeds and FeedsYG1CARBREAMERS Catalog Page Catalog Page
Product Description

#23 (0.1540") Diameter Straight Flute Straight Shank Solid Carbide Chucking Reamer - 0.1540" Shank Diameter X 3/4" Flute Length X 2-1/2" Overall Length, 4 Flutes. Yg-1 Part #K910201540

  • Carbide Straight Shank Chucking Reamers -Straight Flute
  • Precision reamers for a variety of materials, applications and sizes that ensure close hole tolerance and excellent surface finish
  • Straight Flute, Right Hand Cut
  • Shank Diameter = Nominal Reamer Diameter
  • Type of Center: Up to .1175" : Non-Center. Over .1175" : Internal Centers

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
39
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
K910201540
Length Of Flute
3/4"
Overall Length
2-1/2"
Shank Diameter
Equals Reamer Diameter
Number Of Flutes
4
End Style
Chamfered
Tool Coating
None
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Flute End Type
Straight Flute
Shank Type
Straight Shank
Reamer Diameter
0.1540" #23
Coolant Through
Without Coolant Holes
Corner Chamfer
45°
