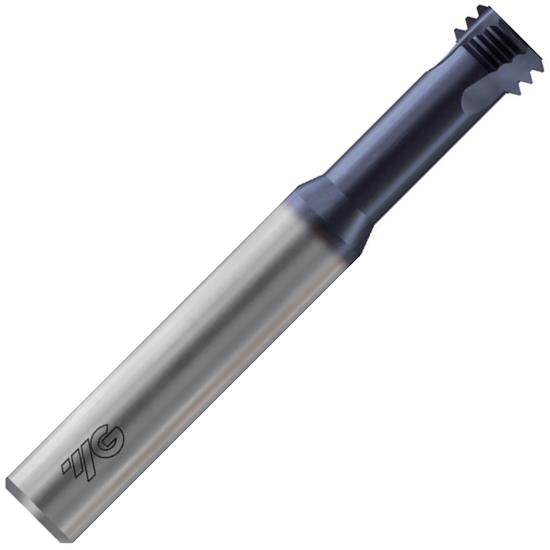

1/4-28 Tri-Form Miniature Carbide Thread Mill, 3 Flutes, 15° Right Hand Spiral, Right Hand Cut, TiAIN Coated - .107" Thread Length x .520" Neck Length x 1/4" Shank x 2.5" OAL

1/4-28 Tri-Form Miniature Carbide Thread Mill, 3 Flutes, 15° Right Hand Spiral, Right Hand Cut, TiAIN Coated - .107" Thread Length x .520" Neck Length x 1/4" Shank x 2.5" OAL
YG-1 TOOL CO.
L12DE420
L12DE420
L12DE420
Weight: 0.0534 LBS
Brand: YG-1 TOOL CO.
$203.13
(30% off)
$142.48
each
Add To My Favorites
Technical Details & Downloads
Catalog Page Catalog Page
Product Description

Yg-1 Carbide Thread Mills Are Designed With A 15° Helix, Right Hand Spiral, Right Hand Cut For Milling Internal Threads And Can Produce Threads Of The Same Pitch In A Wide Range Of Holes Sizes. Yg-1 Thread Mills Are Universally Applicable In Virtually Any Iso Material Group. The Same Thread Mill Can Produce Right Hand Threads And Left Hand Threads With A Simple Program Change. The Same Thread Mill Can Produce Any Class Of Fit. Yg-1 Thread Mills Are Capable Of Producing Full Threads Right To The Bottom Of A Blind Hole.

  • YG-1 Solid Carbide Thread Mills For Internal Unified Threads, Series L1DE:
  • For milling 60° internal Unified threads per ANSI B 1.1
  • 15° helix, right hand spiral, right hand cut
  • Tri-form thread profile reduces tool pressure and tool deflection
  • Reduced neck diameter for added clearance in 2XD deep threading
  • Produces right hand threads and left hand threads
  • For thread milling through holes or blind holes
  • Capable of producing full threads to the bottom of the hole
  • The same thread mill can produce any Class of Fit
  • Hold tight tolerance pitch diameters with program offset changes
  • Low cutting forces make thread mills a perfect solution for underpowered machines
  • No issues with chip control as the short chips eliminate bird nesting typically associated with spiral flute taps
  • Very low chance of scrap with the ease of removing broken tools from the workpiece
  • Excellent thread finish with greater control over cutting condition than with tapping
  • Made from premium micro grain carbide substrate with PVD TiAlN coating

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
25
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
L12DE420
Cutter Diameter
0.207"
Thread Size
0.2500" 1/4-28
Overall Length
2.500"
Shank Diameter
0.2500" 1/4"
Number Of Flutes
3
Helix Angle
15°
Thread Direction
Right or Left
Thread Length
0.107"
Thread Type
UN
Tool Coating
TiAIN
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand Spiral
Series
L12DE
Type
Tri-Form
Shank Type
Plain Shank
Threads Per Inch
28
Thread Pitch
N/A
Coolant Through
Without Coolant Hole
